AAP Infinity-Motion

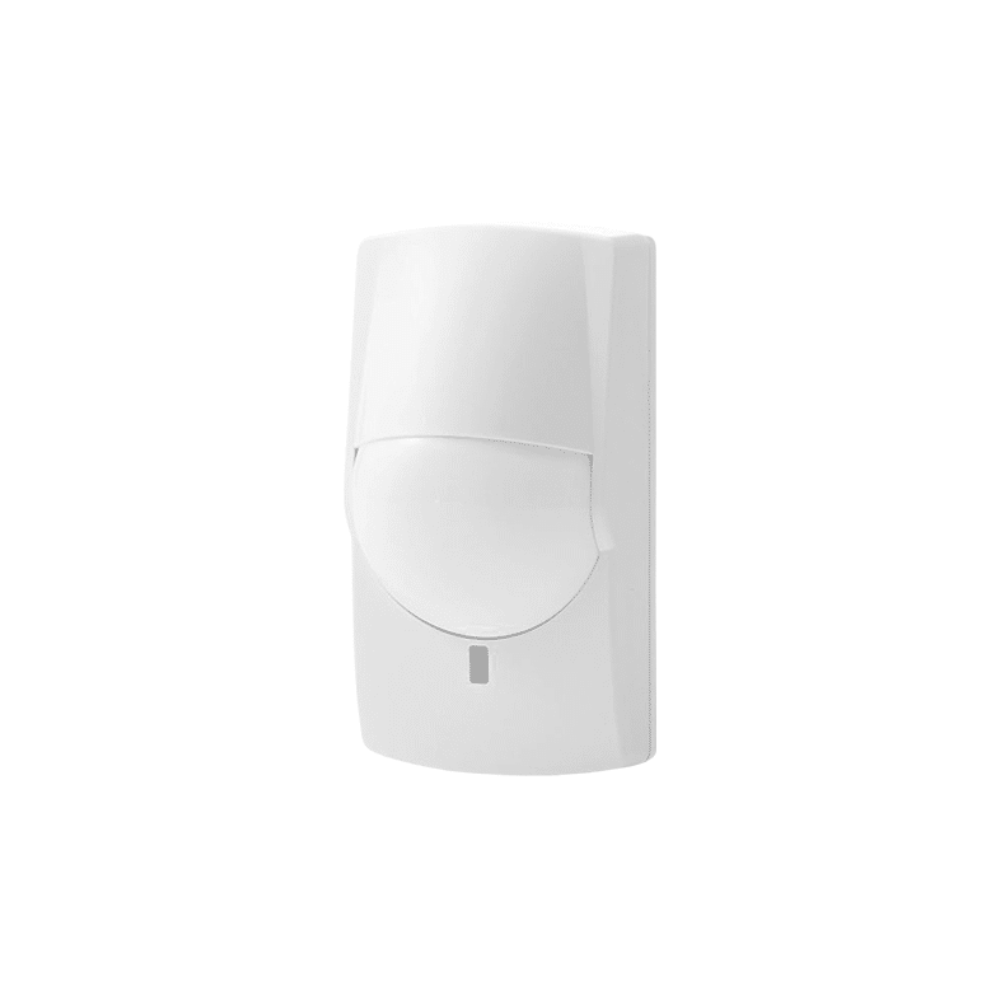

AAP Infinity-Motion Battery-Powered Wireless PIR Detector for EC, ESL & ESX Alarm Control Panels – Works with Infinity Link Key Features :- Detection Method: Passive Inrared Coverage: 12m x 12m @ 85 Degrees Mounting Height: 1.5 – 2.4m Detection Zones: 78 Zones Sensitivity: 1.6 deg.C @ 0.6m/sec Detection Speed: 0.3m – 1.5m/sec Pulse Count: Approx 20 sec (2 or 4) Wireless Range: Up to 500m Line of Sight Frequency: 915Mhz Modulation: GFSK Supervision: 7 minutes Protocol: infinity 2 way encrypted (freelink) LED Indicator: On/Off Selectable Tamper Switch: Front Cover Tamper Battery Type: 1 x CR123A lithium Battery Life: Up to 5 Years Battery Low voltage: 2.4 Volts Operating Temperature: -20 to 50 Deg. C Environment Humidity: 85% max Dimensions: 115mm x 62mm x 50mm Event Transmission: Alarm, Tamper, Low Battery & Supervision Requires Infinity Link AAP Product-Link
- Brand: AAP
- Category: Wireless Alarms
- SKU: Infinity Motion
AAP Infinity-Motion
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- Infinity Motion
- Sku:
- PSW-IP-129980
- Brand:
- AAP
AAP Infinity-Motion
AAP Infinity-Motion Battery-Powered Wireless PIR Detector for EC, ESL & ESX Alarm Control Panels – Works with Infinity Link Key Features :- Detection Method: Passive Inrared Coverage: 12m x 12m @ 85 Degrees Mounting Height: 1.5 – 2.4m Detection Zones: 78 Zones Sensitivity: 1.6 deg.C @ 0.6m/sec Detection Speed: 0.3m – 1.5m/sec Pulse Count: Approx 20 sec (2 or 4) Wireless Range: Up to 500m Line of Sight Frequency: 915Mhz Modulation: GFSK Supervision: 7 minutes Protocol: infinity 2 way encrypted (freelink) LED Indicator: On/Off Selectable Tamper Switch: Front Cover Tamper Battery Type: 1 x CR123A lithium Battery Life: Up to 5 Years Battery Low voltage: 2.4 Volts Operating Temperature: -20 to 50 Deg. C Environment Humidity: 85% max Dimensions: 115mm x 62mm x 50mm Event Transmission: Alarm, Tamper, Low Battery & Supervision Requires Infinity Link AAP Product-Link
