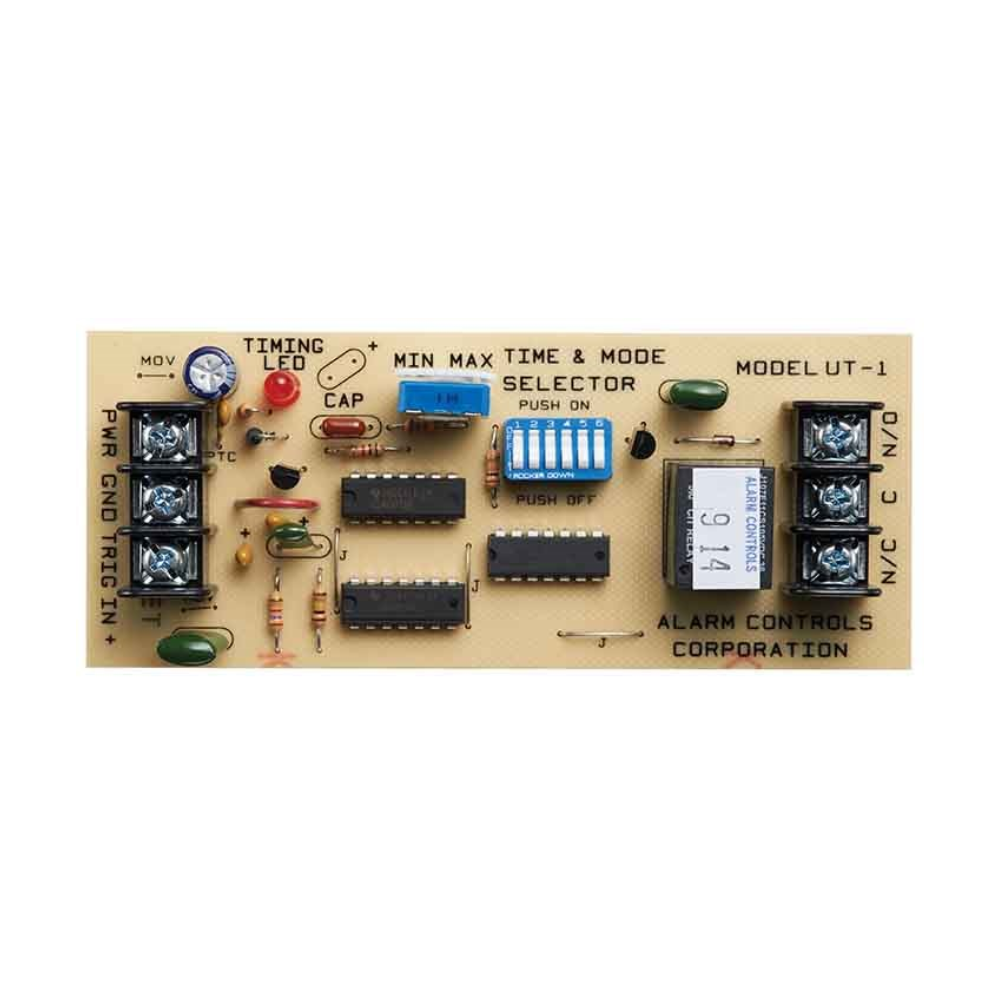

Assa Abloy UT-1
Assa Abloy UT-1 Universal Access Control Timer Board with Four Operation Functions -> Delay on Operate, Delay on Release, One Shot Mode and Pulsing Mode – 16 Adjustable Time Ranges Features: Four modes of operation Sixteen adjustable time ranges – range from 1Sec to 1Hr Noise immunity on all inputs Extreme accuracy and repeatability Voltage range: 6VDC~18VDC Current Draw: 37mA (maximum) Time range: 1 second to 1 hour Contact arrangement: S.P.D.T. Contact rating: 12 Amps @ 28VDC Temperature rating: -25C to +70C Mounting: double-sided adhesive foam tape
- Brand: Assa Abloy
- Category: CCTV Accessories
- SKU: UT-1
Assa Abloy UT-1
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- UT-1
- Sku:
- PSW-IP-347846
- Brand:
- Assa Abloy
Assa Abloy UT-1
Assa Abloy UT-1 Universal Access Control Timer Board with Four Operation Functions -> Delay on Operate, Delay on Release, One Shot Mode and Pulsing Mode – 16 Adjustable Time Ranges Features: Four modes of operation Sixteen adjustable time ranges – range from 1Sec to 1Hr Noise immunity on all inputs Extreme accuracy and repeatability Voltage range: 6VDC~18VDC Current Draw: 37mA (maximum) Time range: 1 second to 1 hour Contact arrangement: S.P.D.T. Contact rating: 12 Amps @ 28VDC Temperature rating: -25C to +70C Mounting: double-sided adhesive foam tape
Datasheets
- PDFUT 1 IM
