Beninca B-BRAINY24+

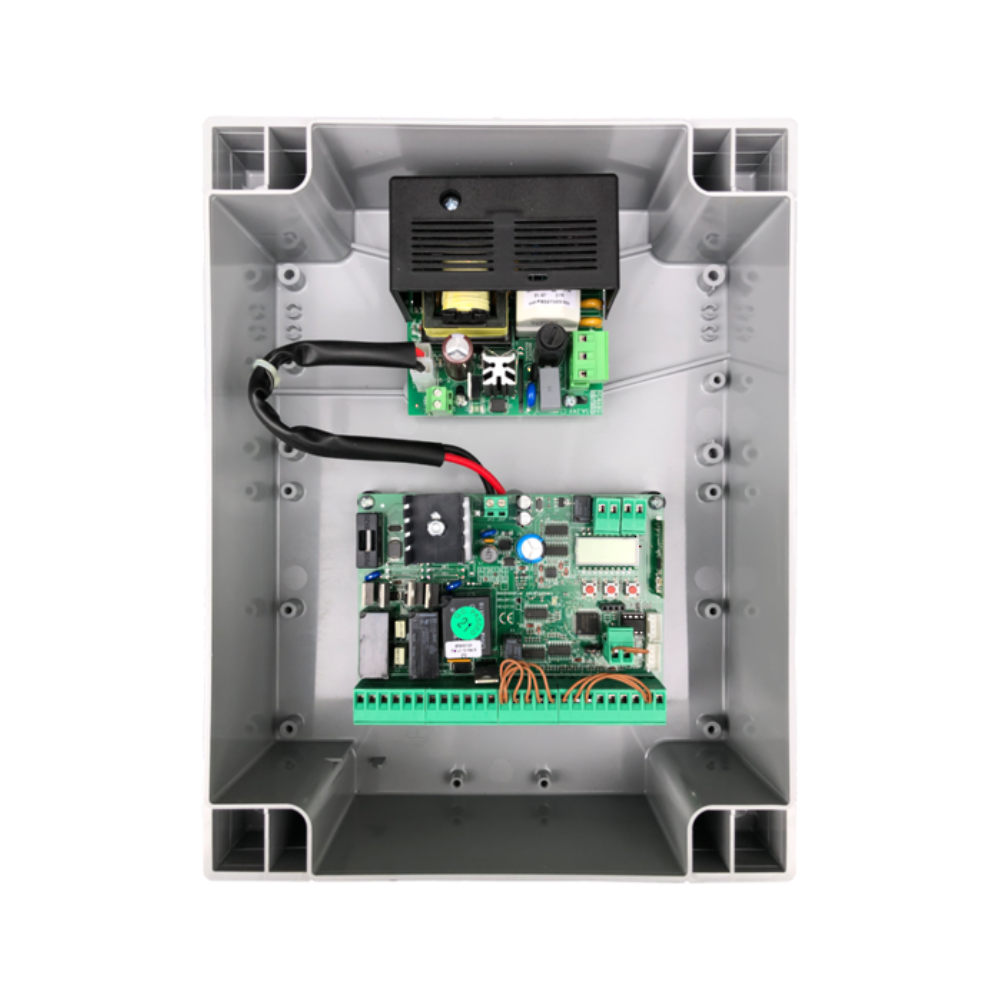

Beninca B-BRAINY24+ 24VDC Controller with integrated receiver and battery charger (64 Remote Slots) – Used For Swing Gate Automation Key Features :- Integrated LCD display Integrated radio receiver 433.92 MHz 64 codes and 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code Removable terminal boards Separate limit switch inputs for each motor Open, close, step-by-step and pedestrian inputs Separate opening-closing and closing photocell inputs Stop input Input for N.C. or 8K2 sensitive edge Encoder Input for 24 Vdc hydraulic motors Output for 12 Vdc electric lock 2 outputs configurable as open gate indicator, second radio channel, courtesy light, zone light or photocell testing, flashing light, open gate alarm, NC input alarm Output for connecting flashing light Autoset of operating parameters Separate electronic torque adjustment for each motor Separate electronic speed adjustment for each motor Anti-crushing safety through amperometry detection and encoder management Separate slowdowns for each motor in opening and closing phases Advantouch system to configure parameters and manage radio transmitters Number of maneuvers Programming access password Maintenance warning Built-in battery charger
- Brand: Beninca
- Category: Gate Automation
- SKU: B-BRAINY24+
Beninca B-BRAINY24+
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- B-BRAINY24+
- Sku:
- PSW-IP-860846
- Brand:
- Beninca
Beninca B-BRAINY24+
Beninca B-BRAINY24+ 24VDC Controller with integrated receiver and battery charger (64 Remote Slots) – Used For Swing Gate Automation Key Features :- Integrated LCD display Integrated radio receiver 433.92 MHz 64 codes and 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code Removable terminal boards Separate limit switch inputs for each motor Open, close, step-by-step and pedestrian inputs Separate opening-closing and closing photocell inputs Stop input Input for N.C. or 8K2 sensitive edge Encoder Input for 24 Vdc hydraulic motors Output for 12 Vdc electric lock 2 outputs configurable as open gate indicator, second radio channel, courtesy light, zone light or photocell testing, flashing light, open gate alarm, NC input alarm Output for connecting flashing light Autoset of operating parameters Separate electronic torque adjustment for each motor Separate electronic speed adjustment for each motor Anti-crushing safety through amperometry detection and encoder management Separate slowdowns for each motor in opening and closing phases Advantouch system to configure parameters and manage radio transmitters Number of maneuvers Programming access password Maintenance warning Built-in battery charger
