Hikvision AX-Hybrid-Pro-Alarm-KIT-1

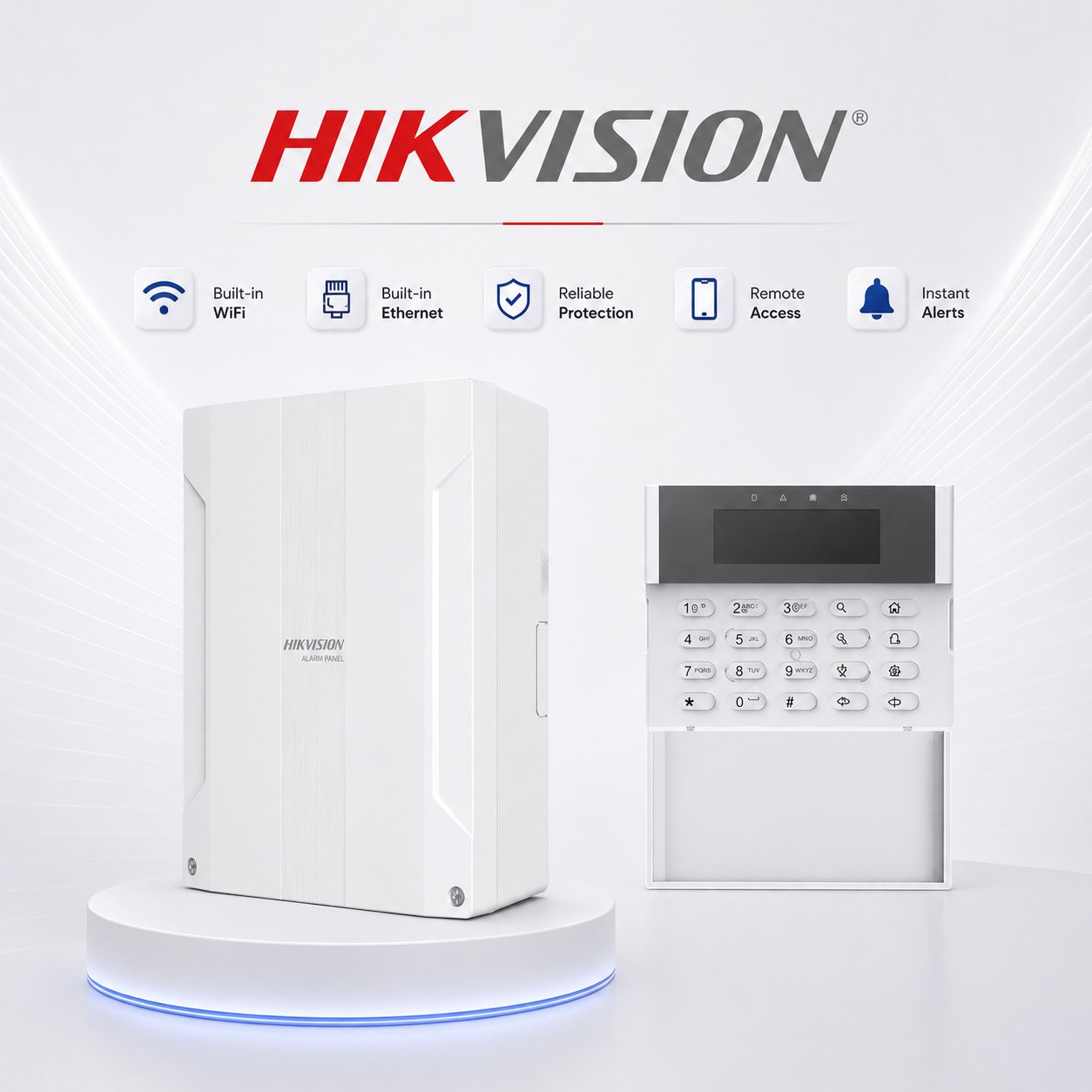

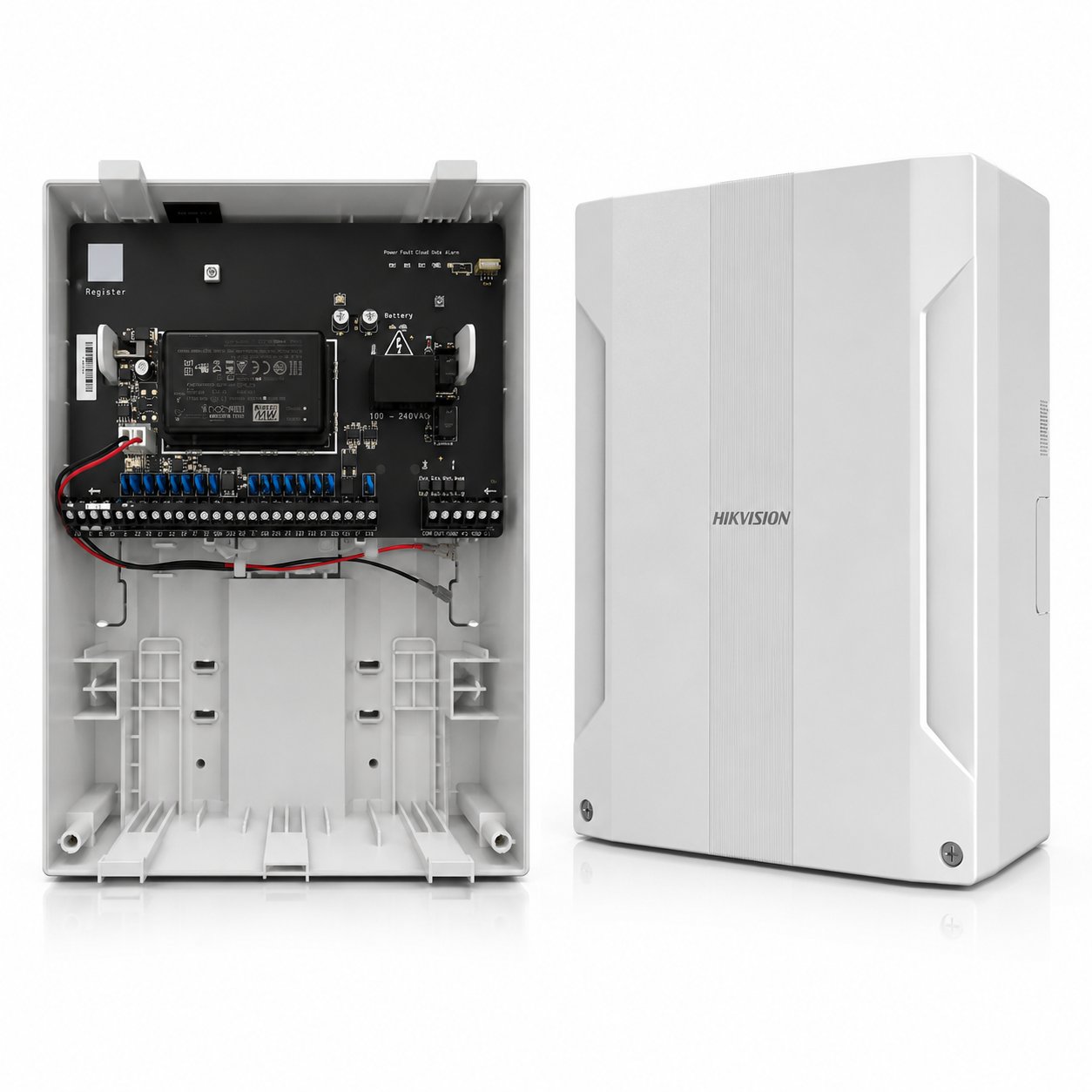

Hikvision AX-Hybrid-Pro-Alarm-KIT-1 -> Wired Security Intrusion Alarm Kit -> Includes -> 1* DS-PHA64-LP Hybrid Wired Alarm Panel + 1* DS-PK1-LRT-HWB Wired Alarm Keypad The Alarm Kit includes :- 1 * Hikvision DS-PHA64-LP IP AX Hybrid Pro Hybrid Alarm Panel in an enclosure Built-in IP module – Built-in LAN & WLAN – No need to purchase any IP module separately 8 On-Board Zones – Expandable to 64 Zones* (Use DS-PM1-I8O2-H 8-zone wired expander) Supports video verification – Up to 4 channels from CCTV Supports gate automation and garage door control using wireless relay/s* (Use DS-PM1-O1L-WB / DS-PM1-O1H-WB with DS-PM1-RT-HWB wireless Tri-X receiver) Supports web-management, programming & control Free app control and monitoring – Hik-connect Alarm monitoring supported in NZ* (ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol) 1 * Hikvision DS-PK1-LRT-HWB Wired Alarm Keypad Supports 433MHz Mifare Keyfobs Programming & control of the main alarm panel
- Brand: Hikvision
- Category: Wireless Alarms
- SKU: AX-Hybrid-Pro-Alarm-KIT-1
Hikvision AX-Hybrid-Pro-Alarm-KIT-1
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- AX-Hybrid-Pro-Alarm-KIT-1
- Sku:
- PSW-IP-119443
- Brand:
- Hikvision
Hikvision AX-Hybrid-Pro-Alarm-KIT-1
Hikvision AX-Hybrid-Pro-Alarm-KIT-1 -> Wired Security Intrusion Alarm Kit -> Includes -> 1* DS-PHA64-LP Hybrid Wired Alarm Panel + 1* DS-PK1-LRT-HWB Wired Alarm Keypad The Alarm Kit includes :- 1 * Hikvision DS-PHA64-LP IP AX Hybrid Pro Hybrid Alarm Panel in an enclosure Built-in IP module – Built-in LAN & WLAN – No need to purchase any IP module separately 8 On-Board Zones – Expandable to 64 Zones* (Use DS-PM1-I8O2-H 8-zone wired expander) Supports video verification – Up to 4 channels from CCTV Supports gate automation and garage door control using wireless relay/s* (Use DS-PM1-O1L-WB / DS-PM1-O1H-WB with DS-PM1-RT-HWB wireless Tri-X receiver) Supports web-management, programming & control Free app control and monitoring – Hik-connect Alarm monitoring supported in NZ* (ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol) 1 * Hikvision DS-PK1-LRT-HWB Wired Alarm Keypad Supports 433MHz Mifare Keyfobs Programming & control of the main alarm panel
Datasheets
- PDFHik Connect EcoSystem brochure
- PDFDS PHA64 LP Datasheet
- PDFDS PK1 LRT HWB
- PDFBaseline AX Hybrid Pro Quick Start Guide V1.0.2 20220627
- PDFAX HYBRID PRO User Manual v1.0.4 20230912
- PDFHikvision AX Hybrid Pro Configuration via Web Browser
- PDFDS PK1 LRT HWB Wired Keypad User Manual V1.0.3
- PDFDS PK1 LRT HWB wired keypad operation command v1.0.3
