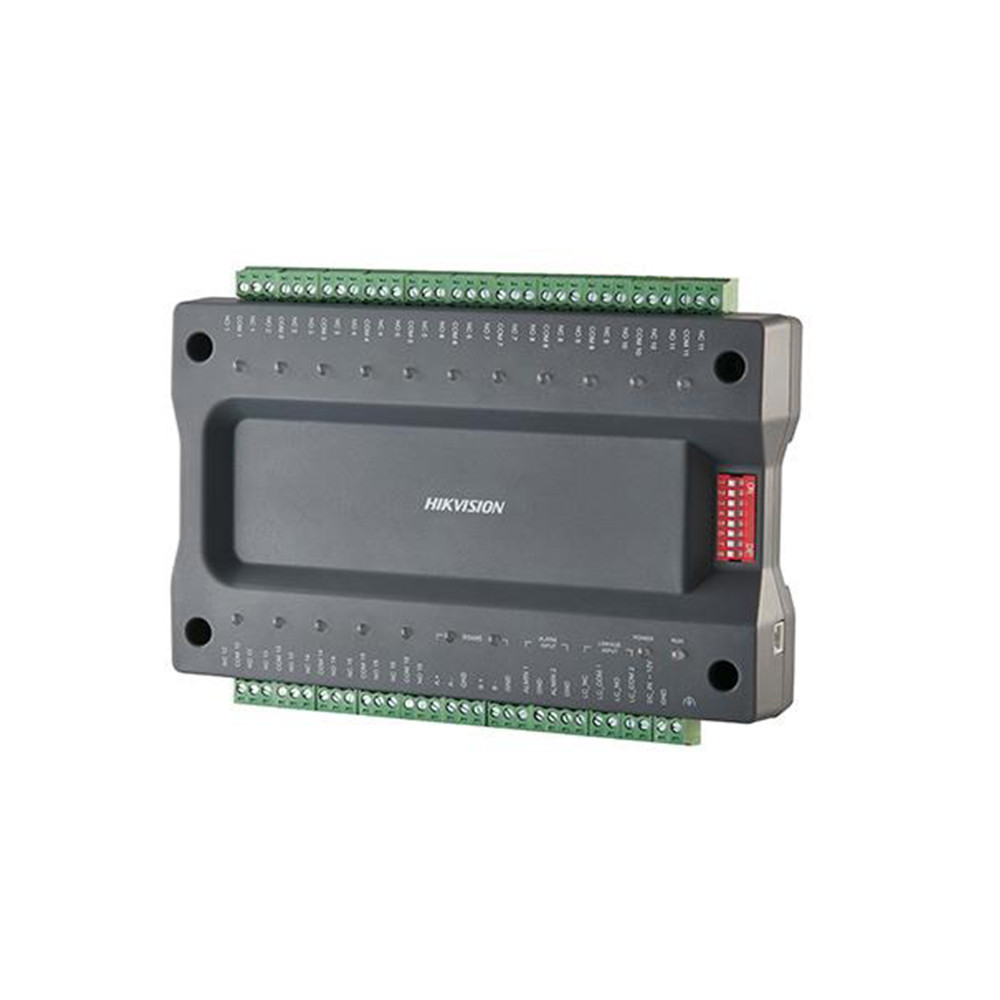

Hikvision DS-K2M0016A
Hikvision DS-K2M0016A Distributed Slave Lift / Elevator Controller – Requires DS-K2210 Master Controller – 2 x RS-485, 2 x Alarm Inputs, 16 x Relay Outputs, 1 x Buzzer, DC12V Key Features :- Model – DS-K2M0016A Distributed elevator controller Connectable with up to 16 relays to control floor buttons in the elevator RS-485 communication with the master elevator controller DIP switch settings for device address and relay types Up to 8 distributed elevator controllers can be linked to the master elevator controller Control the elevator via the relay 2 x RS-485 Interface 2 x Alarm Input 16 x Relay Outputs 1 x Buzzer Working Temperature: -40°F to 158°F Working Humidity: 0% to 90% (No Condensation) Power Supply: 12VDC ± 15% Guide Rail Installation Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm 32 bit Processor
- Brand: Hikvision
- Category: CCTV Accessories
- SKU: DS-K2M0016A
Hikvision DS-K2M0016A
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- DS-K2M0016A
- Sku:
- PSW-IP-242245
- Brand:
- Hikvision
Hikvision DS-K2M0016A
Hikvision DS-K2M0016A Distributed Slave Lift / Elevator Controller – Requires DS-K2210 Master Controller – 2 x RS-485, 2 x Alarm Inputs, 16 x Relay Outputs, 1 x Buzzer, DC12V Key Features :- Model – DS-K2M0016A Distributed elevator controller Connectable with up to 16 relays to control floor buttons in the elevator RS-485 communication with the master elevator controller DIP switch settings for device address and relay types Up to 8 distributed elevator controllers can be linked to the master elevator controller Control the elevator via the relay 2 x RS-485 Interface 2 x Alarm Input 16 x Relay Outputs 1 x Buzzer Working Temperature: -40°F to 158°F Working Humidity: 0% to 90% (No Condensation) Power Supply: 12VDC ± 15% Guide Rail Installation Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm 32 bit Processor
Datasheets
- PDFDS K2M0016A
