Huier 60290

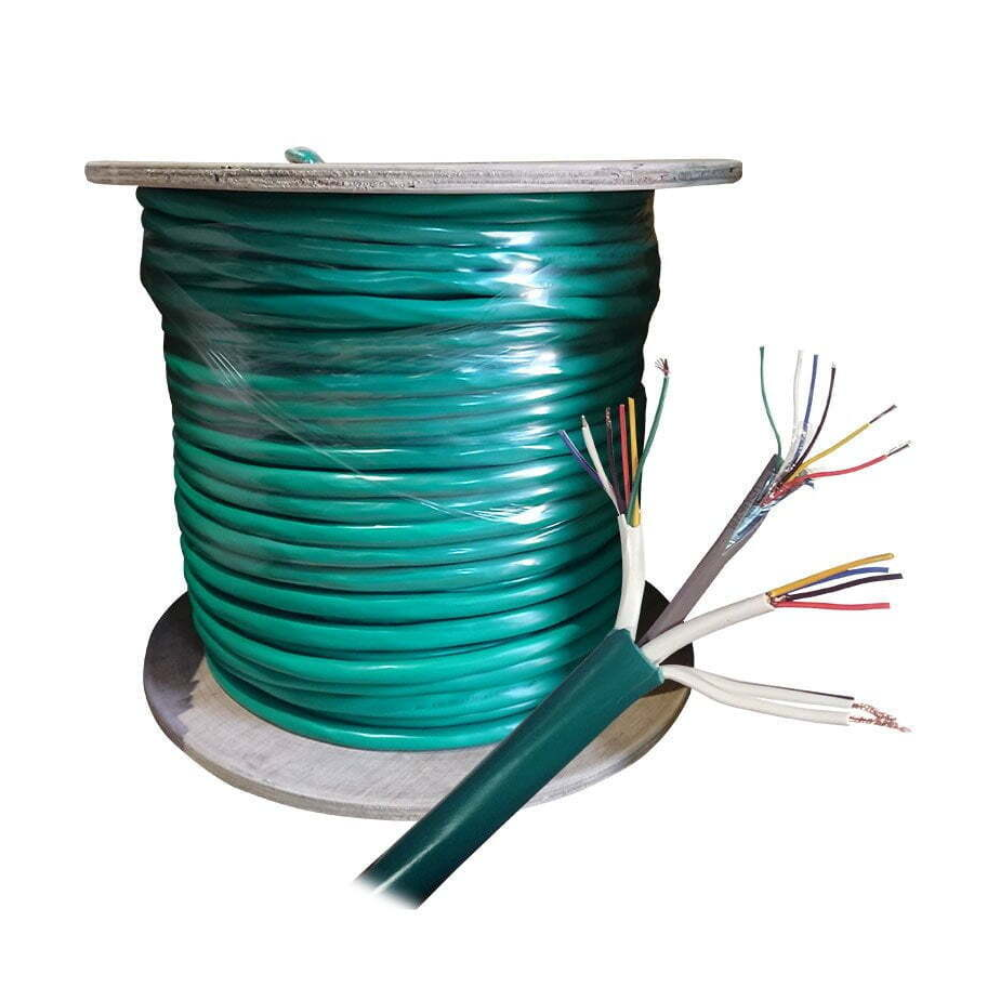

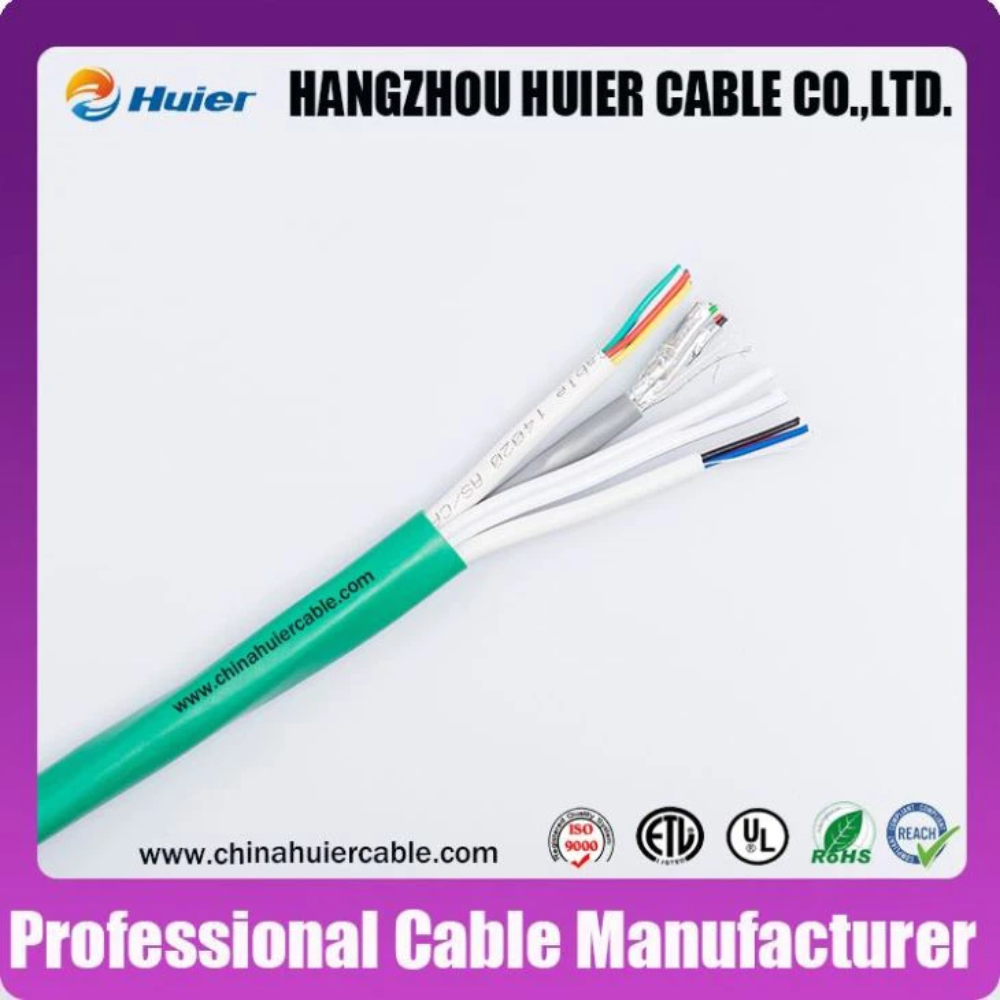

Huier 60290 Figure-8 and Multi-Core Composite Security / Access Control Cable – Wiegand – Green Sheath – 200m Wooden Drum – 1 * 6-Core Screen Cable + 1 * 4-Core 0.5mm Cable + 1 * 6-Core 0.5mm Cable + 1 * Figure-8 / Twin 0.75mm Cable Construction Parameters :- A: 6C Screened Security Cable Conductor: 6C Stranded Tinned Copper Insulation: PVC Shield 1: PET Tape Drain Wire: Stranded Tinned Copper Shield 2: Aluminum Foil Rip-cord: Yes Sheath: PVC Grey B: 4C Unscreened Security Cable Conductor: 4C Stranded Bare Copper Insulation: PVC Rip-cord: Yes Sheath: PVC White C: 6C Unscreened Security Cable Conductor: 6C Bare Copper Insulation: PVC Rip-cord: Yes Sheath: PVC D: Twin Speaker Cable with Black Stripe Conductor: 2C Bare Copper Sheath: PVC with Black String Rip-cord: Yes Sheath: PVC Mechanical Properties (20℃): Rate Voltage 300V Rate Temperature -20℃ up to +75℃ Conductor Resistance(DCR@200C) ≤10.0Ω/100m Insulation Resistance(DC) ≧0.010Ω/km Conductor breaking elongation rate ≧15% Insulation tension ≧16MPa Sheath tension before aging ≧10MPa Insulation breaking elongation ≧200% Sheath breaking elongation before aging ≧125% Sheath breaking elongation after aging ≧100%
- Brand: Huier
- Category: Network & Security Cable
- SKU: 60290
Huier 60290
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- 60290
- Sku:
- PSW-IP-717962
- Brand:
- Huier
Huier 60290
Huier 60290 Figure-8 and Multi-Core Composite Security / Access Control Cable – Wiegand – Green Sheath – 200m Wooden Drum – 1 * 6-Core Screen Cable + 1 * 4-Core 0.5mm Cable + 1 * 6-Core 0.5mm Cable + 1 * Figure-8 / Twin 0.75mm Cable Construction Parameters :- A: 6C Screened Security Cable Conductor: 6C Stranded Tinned Copper Insulation: PVC Shield 1: PET Tape Drain Wire: Stranded Tinned Copper Shield 2: Aluminum Foil Rip-cord: Yes Sheath: PVC Grey B: 4C Unscreened Security Cable Conductor: 4C Stranded Bare Copper Insulation: PVC Rip-cord: Yes Sheath: PVC White C: 6C Unscreened Security Cable Conductor: 6C Bare Copper Insulation: PVC Rip-cord: Yes Sheath: PVC D: Twin Speaker Cable with Black Stripe Conductor: 2C Bare Copper Sheath: PVC with Black String Rip-cord: Yes Sheath: PVC Mechanical Properties (20℃): Rate Voltage 300V Rate Temperature -20℃ up to +75℃ Conductor Resistance(DCR@200C) ≤10.0Ω/100m Insulation Resistance(DC) ≧0.010Ω/km Conductor breaking elongation rate ≧15% Insulation tension ≧16MPa Sheath tension before aging ≧10MPa Insulation breaking elongation ≧200% Sheath breaking elongation before aging ≧125% Sheath breaking elongation after aging ≧100%
