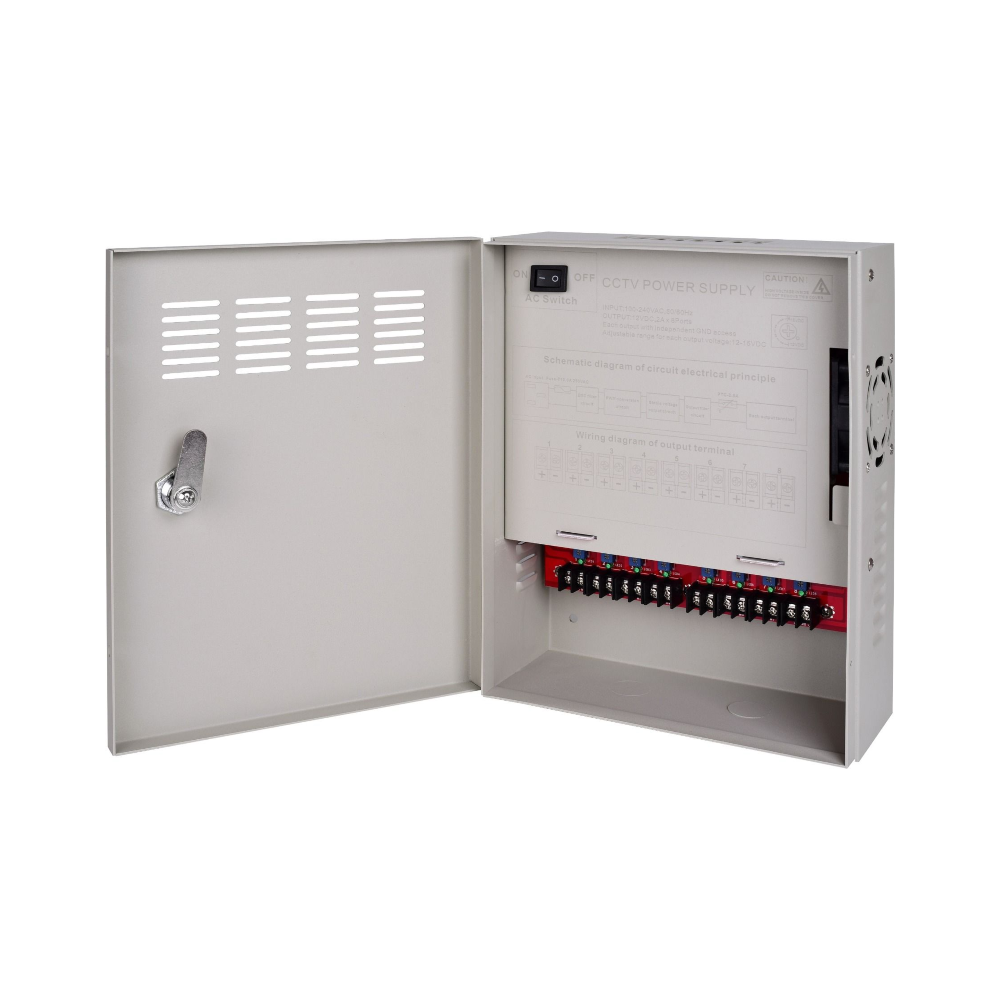

iSecure CP1208-16A-4K
iSecure CP1208-16A-4K 12VDC 16A Wall-Mount Power Supply Distribution Panel with 8x PTC Fused Outputs – Suitable for 4K HDCVI/HDTVI/AHD Camera Power Distribution Features :- Input Voltage 100V – 240V Channels 8 Inrush Current ≤ 50A DC Output voltage range 12V – 15V DC Output Current 16A Output Ripple and Noise ≤ 200mVpp Overshoot at turn-on/off ≤ 110% Over Voltage Protection 16V Input Frequency 50/60Hz Fuse Type PTC 2.6A (Resettable) Unit size 260 × 201 × 86.8 mm Unit weight 2.15Kg(4.8LB) Gift box 305 × 240 × 125 mm Operating Temperature 0 ~ 40°C / Less than 85% RH (Non-condensing) Storage Temperature -20 ~ 75°C / Less than 90% RH (Non-condensing)
- Brand: iSecure
- Category: Power Supplies
- SKU: CP1208-16A-4K
iSecure CP1208-16A-4K
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- CP1208-16A-4K
- Sku:
- PSW-IP-125733
- Brand:
- iSecure
iSecure CP1208-16A-4K
iSecure CP1208-16A-4K 12VDC 16A Wall-Mount Power Supply Distribution Panel with 8x PTC Fused Outputs – Suitable for 4K HDCVI/HDTVI/AHD Camera Power Distribution Features :- Input Voltage 100V – 240V Channels 8 Inrush Current ≤ 50A DC Output voltage range 12V – 15V DC Output Current 16A Output Ripple and Noise ≤ 200mVpp Overshoot at turn-on/off ≤ 110% Over Voltage Protection 16V Input Frequency 50/60Hz Fuse Type PTC 2.6A (Resettable) Unit size 260 × 201 × 86.8 mm Unit weight 2.15Kg(4.8LB) Gift box 305 × 240 × 125 mm Operating Temperature 0 ~ 40°C / Less than 85% RH (Non-condensing) Storage Temperature -20 ~ 75°C / Less than 90% RH (Non-condensing)
