OneTop DB1260-DRET-PTL

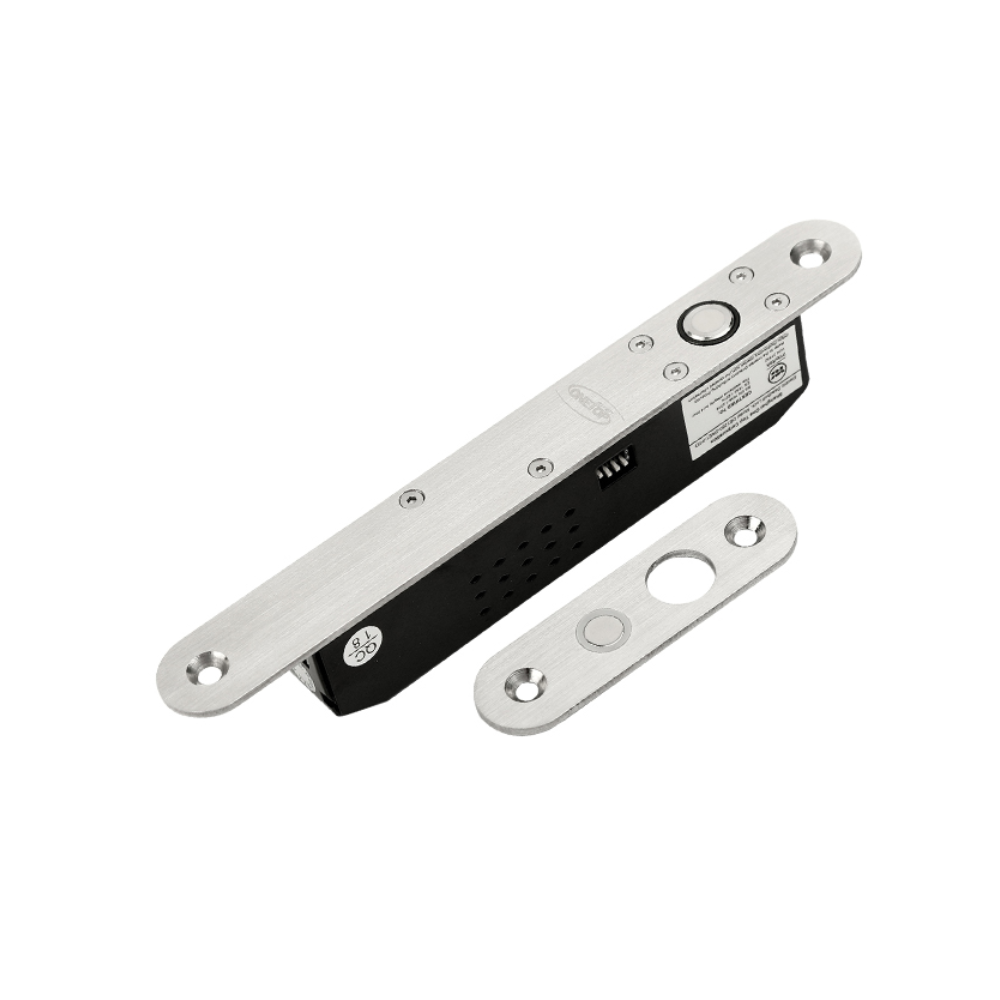

OneTop DB1260-DRET-PTL Slimline Electronic Drop Bolt Lock – 12VDC / 24VDC – Fail Safe – Fire-Rated – Supports Monitoring (Door Status Sensor) – 800Kg Holding Force Key Features :- Certifications – CE, ROHS, Intertek, BS EN1634-1: 2014 Fire rated 4 hours Dimensions – 210L x 25W x 3H (mm) – Faceplate only. Product overall depth 35mm Strike Plate Dimensions – 91.8L x 25W x 35H (mm) – Faceplate only. Depth 7mm Bolt Dimension – 12.7mm Diameter x 14.5 Depth (mm) Lock Operating Voltage – 12-24VDC +/- 10% Lock Operating Current – 12VDC – Rush: 1.15A; Hold 0.25A. 24VDC – Rush: 0.62A; Hold 0.14A Lock Holding Force – Up to 800Kg Remote Release – External Remote to release the locked door Output Signals – Door Status Output (DSS) COM/NO/NC. Door closed or open status output LED Indicator – see specification sheet Audible Tone – see specification sheet Weight – 0.6Kg Bolt Extend Delay – Time delay setting of 0/3/6/10 seconds Surface Finish – Brushed Stainless Steel Faceplate OneTop Product-Link
- Brand: OneTop
- Category: CCTV Accessories
- SKU: DB1260-DRET-PTL
OneTop DB1260-DRET-PTL
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- DB1260-DRET-PTL
- Sku:
- PSW-IP-760018
- Brand:
- OneTop
OneTop DB1260-DRET-PTL
OneTop DB1260-DRET-PTL Slimline Electronic Drop Bolt Lock – 12VDC / 24VDC – Fail Safe – Fire-Rated – Supports Monitoring (Door Status Sensor) – 800Kg Holding Force Key Features :- Certifications – CE, ROHS, Intertek, BS EN1634-1: 2014 Fire rated 4 hours Dimensions – 210L x 25W x 3H (mm) – Faceplate only. Product overall depth 35mm Strike Plate Dimensions – 91.8L x 25W x 35H (mm) – Faceplate only. Depth 7mm Bolt Dimension – 12.7mm Diameter x 14.5 Depth (mm) Lock Operating Voltage – 12-24VDC +/- 10% Lock Operating Current – 12VDC – Rush: 1.15A; Hold 0.25A. 24VDC – Rush: 0.62A; Hold 0.14A Lock Holding Force – Up to 800Kg Remote Release – External Remote to release the locked door Output Signals – Door Status Output (DSS) COM/NO/NC. Door closed or open status output LED Indicator – see specification sheet Audible Tone – see specification sheet Weight – 0.6Kg Bolt Extend Delay – Time delay setting of 0/3/6/10 seconds Surface Finish – Brushed Stainless Steel Faceplate OneTop Product-Link
