OneTop ES20M

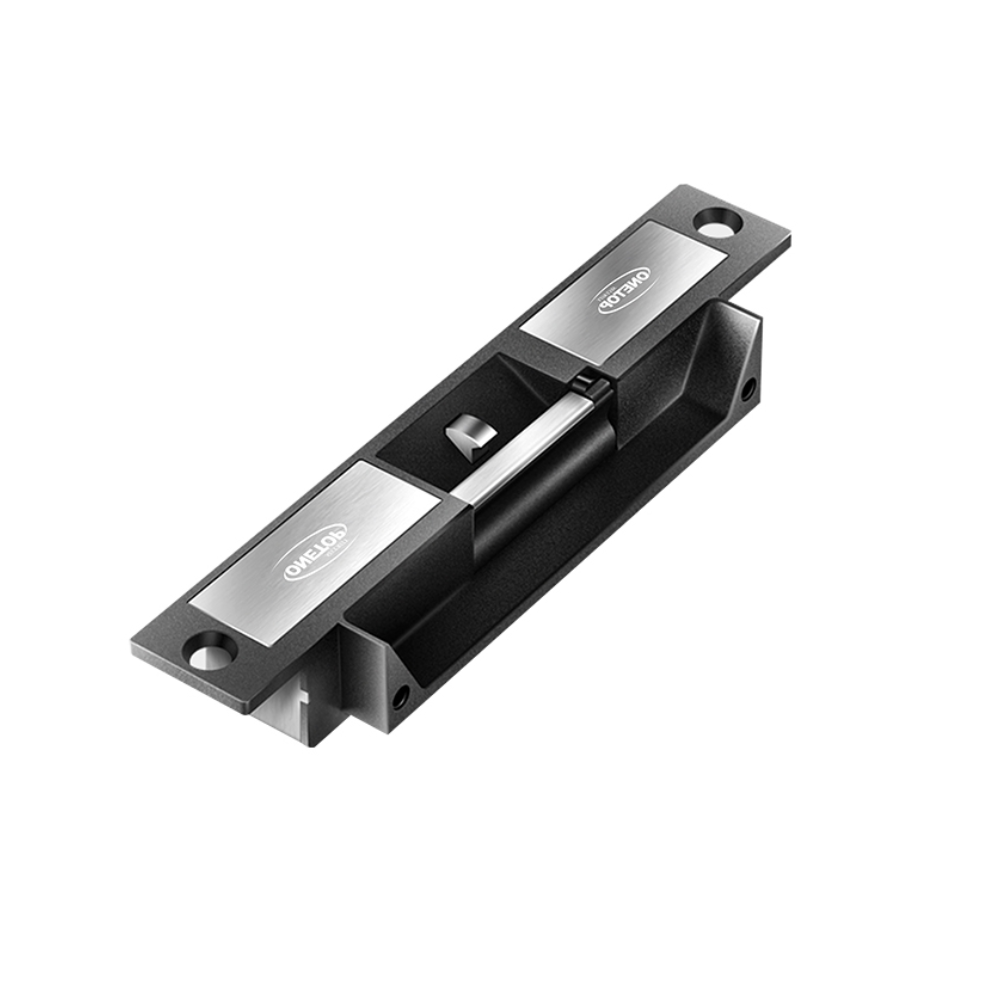

OneTop ES20M IP56-Rated Outdoor-Rated Heavy-Duty Electric Strike Lock – Fail-Safe / Fail-Secure – Fire-Rated – Supports Monitoring – 12VDC / 24VDC Powered – 5MM Extension Lip Key Features :- Certifications – ROHS, CE, Intertek. BS EN1634-1: 2024 Fire rated 4 hours Fail Safe / Fail Secure – Can be manually switched between PTO and PTL Lock Dimension – 176.0L x 44.5W x 26.5H (mm) Lock Operating Voltage -12/24VDC +/- 10% Lock Operating Current – 12VDC 220mA, 24VDC 120mA Output Signals – see specification sheet Lock Holding Force – 850Kg Impact Force – 200J Weight – 0.6Kg Surface Finish – Stainless Steel Body OneTop Product-Link
- Brand: OneTop
- Category: Electric Locks & Strikes
- SKU: ES20M
OneTop ES20M
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- ES20M
- Sku:
- PSW-IP-112724
- Brand:
- OneTop
OneTop ES20M
OneTop ES20M IP56-Rated Outdoor-Rated Heavy-Duty Electric Strike Lock – Fail-Safe / Fail-Secure – Fire-Rated – Supports Monitoring – 12VDC / 24VDC Powered – 5MM Extension Lip Key Features :- Certifications – ROHS, CE, Intertek. BS EN1634-1: 2024 Fire rated 4 hours Fail Safe / Fail Secure – Can be manually switched between PTO and PTL Lock Dimension – 176.0L x 44.5W x 26.5H (mm) Lock Operating Voltage -12/24VDC +/- 10% Lock Operating Current – 12VDC 220mA, 24VDC 120mA Output Signals – see specification sheet Lock Holding Force – 850Kg Impact Force – 200J Weight – 0.6Kg Surface Finish – Stainless Steel Body OneTop Product-Link
Datasheets
- PDFES20 ES20M
- PDFEM20M Manual
