Raysharp RS5MPIPCCTVKIT1

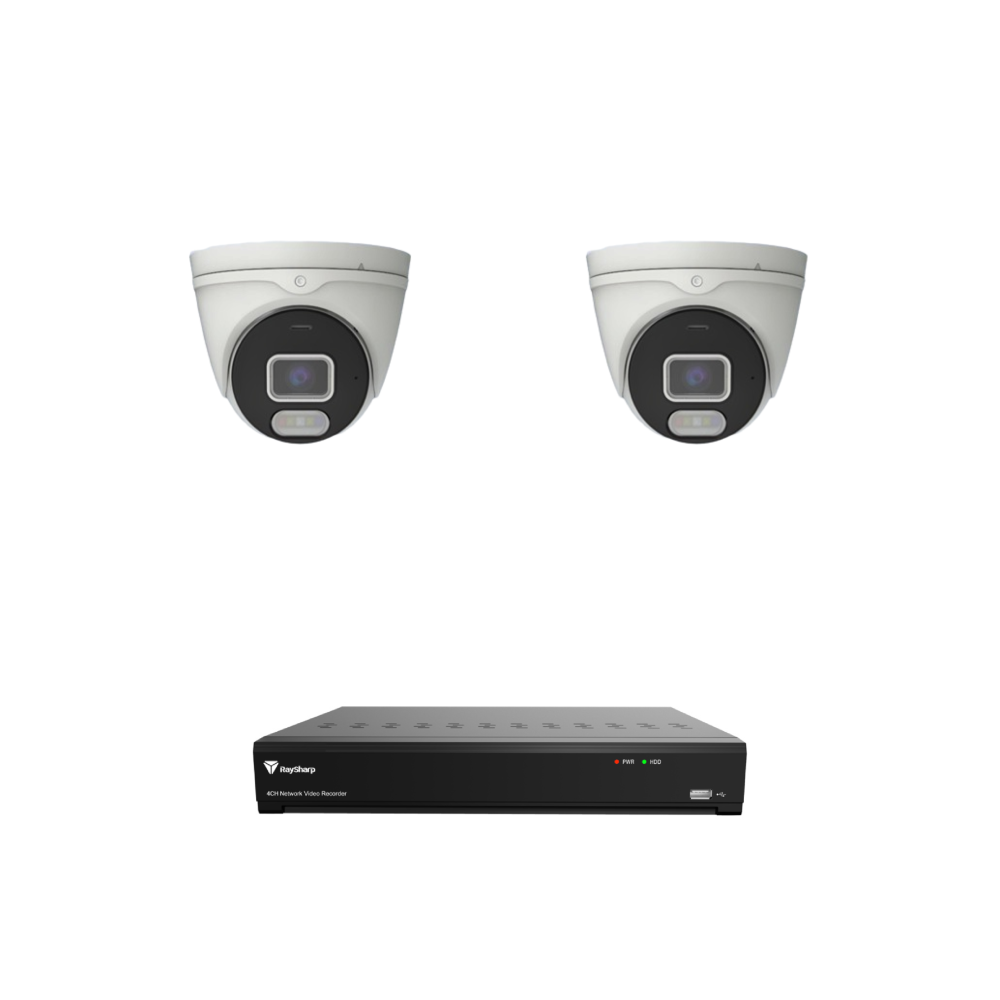

Raysharp RS5MPIPCCTVKIT1 5MP IP CCTV Kit # 1 with 1 * RS-N2104HR-PR 4-CH NVR (without HDD) + 2 * RS-CH356M4MJG-HALTF-LFW28PW 5MP All-in-One IP Turret Cameras The Kit includes :- 1 * RS-N2104HR-PR 4K 4-Channel 4x PoE NVR (without HDD) 2 * RS-CH356M4MJG-HALTF-LFW28PW AI Lite Fixed Series H265 5MP PoE IP Dual-Light (25m IR + 20m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball network Camera with 2.8mm Fixed Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features NVR Features :- Video Resolution: 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / 720p Video Recording Bandwidth Inputs: 320M Video Recording Bandwidth out: 320M Frame rate: 12MP: 30fps; 4K: 120fps; 4MP: 240fps; 2MP: 480fps AI: Face Detection / Pedestrian Detection / Vehicle Detection / Cross Counting / Heat Map / Crowd Density Detection / Perimeter Intrusion Detection / Line Crossing Detection / Queue Length Detection / License Plate Detection / Rare Sound Detection Playback: Max 4CH playback Alarm Input/out: 4 in /1 out PoE: 4* RJ45 100 Base-T 802.3at/af HDD: 1 SATA HDD, up to 12TB Operating Temperature / Humidity: Temperature : -10°C~+50°C (14°F ~ 122°F); Humidity : Less than 90%RH Supports ONVIF (Profile S, G, T) Camera features :- Imaging Device: 1/2.7″ Effective Pixels: 5MP -> 2880 (H) x 1620 (V） Min. Illumination: Color 0.007lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON Lens Type: Fixed (M12 / F1.0) Focal Length: 2.8 mm Angular Field of View: Horizontal:110° , Vertical:58°, Diagonal: 131° IR Viewable Length: Up to 25m Warm Light Viewable Length: Up to 20m Audio: 2-way – Built-in microphone & Speaker Alarm: Red & Blue flashing lights Image Setting: Full Color Mode / Day & Night Mode / Smart Illumination Smart Feature: Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound, Intrusion, Region Entrance, Region Exiting Video Quality Adjustment: 256Kbps ~ 16Mbps Operating Conditions: -30～+60°C ≤ 90% RH Ingress Protection: IP67 Supports ONVIF (Profile S, G, T)
- Brand: Raysharp
- Category: CCTV Accessories
- SKU: RS5MPIPCCTVKIT1
Raysharp RS5MPIPCCTVKIT1
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- RS5MPIPCCTVKIT1
- Sku:
- PSW-IP-140447
- Brand:
- Raysharp
Raysharp RS5MPIPCCTVKIT1
Raysharp RS5MPIPCCTVKIT1 5MP IP CCTV Kit # 1 with 1 * RS-N2104HR-PR 4-CH NVR (without HDD) + 2 * RS-CH356M4MJG-HALTF-LFW28PW 5MP All-in-One IP Turret Cameras The Kit includes :- 1 * RS-N2104HR-PR 4K 4-Channel 4x PoE NVR (without HDD) 2 * RS-CH356M4MJG-HALTF-LFW28PW AI Lite Fixed Series H265 5MP PoE IP Dual-Light (25m IR + 20m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball network Camera with 2.8mm Fixed Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features NVR Features :- Video Resolution: 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / 720p Video Recording Bandwidth Inputs: 320M Video Recording Bandwidth out: 320M Frame rate: 12MP: 30fps; 4K: 120fps; 4MP: 240fps; 2MP: 480fps AI: Face Detection / Pedestrian Detection / Vehicle Detection / Cross Counting / Heat Map / Crowd Density Detection / Perimeter Intrusion Detection / Line Crossing Detection / Queue Length Detection / License Plate Detection / Rare Sound Detection Playback: Max 4CH playback Alarm Input/out: 4 in /1 out PoE: 4* RJ45 100 Base-T 802.3at/af HDD: 1 SATA HDD, up to 12TB Operating Temperature / Humidity: Temperature : -10°C~+50°C (14°F ~ 122°F); Humidity : Less than 90%RH Supports ONVIF (Profile S, G, T) Camera features :- Imaging Device: 1/2.7″ Effective Pixels: 5MP -> 2880 (H) x 1620 (V） Min. Illumination: Color 0.007lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON Lens Type: Fixed (M12 / F1.0) Focal Length: 2.8 mm Angular Field of View: Horizontal:110° , Vertical:58°, Diagonal: 131° IR Viewable Length: Up to 25m Warm Light Viewable Length: Up to 20m Audio: 2-way – Built-in microphone & Speaker Alarm: Red & Blue flashing lights Image Setting: Full Color Mode / Day & Night Mode / Smart Illumination Smart Feature: Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound, Intrusion, Region Entrance, Region Exiting Video Quality Adjustment: 256Kbps ~ 16Mbps Operating Conditions: -30～+60°C ≤ 90% RH Ingress Protection: IP67 Supports ONVIF (Profile S, G, T)
