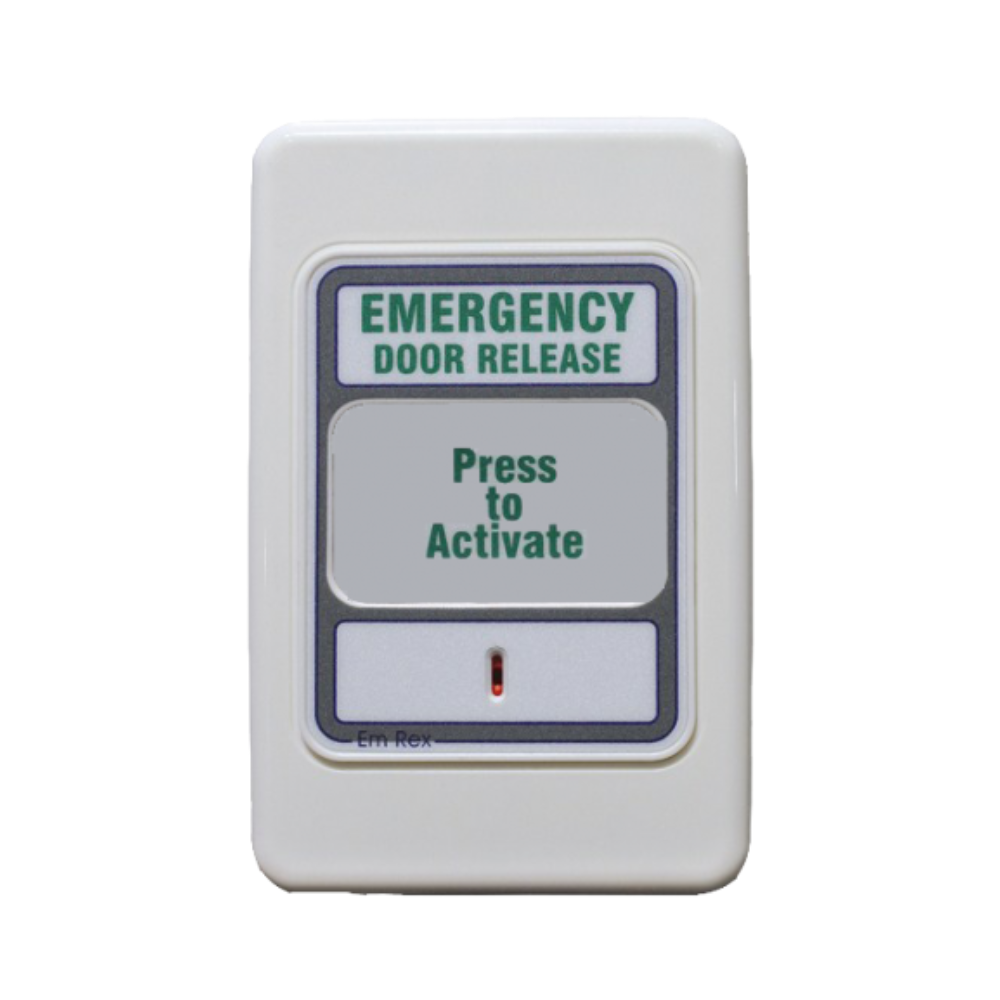

Trojan Em Rex-WP
Trojan Em Rex-WP Outdoor IP55 Rated Weatherproof Emergency Exit / Door Release Unit – Used in Electronic Access Control – Supports 9~16VDC Input – 2 Sets of N/O & N/C Outputs The Em-Rex – WP (Weather Protected Emergency Exit Device) is an emergency door release unit, which can be used on its own or in conjunction with our Request To Exit products, together these provide a total access controlled exit solution. The Em Rex-WP is the same as the standard Em Rex except that it provides additional protection against dust and water ingress. The Em Rex-WP is designed to withstand splashes and sprays but is not designed for submersion or exposure to high-pressure water streams. Key Features :- Designed to achieve IP55 ingress protection rating A protective coating has been applied to the PCB, the mechanism uses a stainless steel spring and an EVA gasket is fitted to provide a weather protection seal The unit is field re-settable, a reset tool is supplied with every unit The activation window is made from a durable polycarbonate, no parts require replacement after an activation Two outputs; one to break lock power and one for status monitoring Visual confirmation of activation, a red indicator bar appears once activated Audible confirmation of activation via an internal sounder Auxiliary input for remote operation of sounder (can be triggered by external trigger or by installation in the Em Rex ® Monitored Cover unit (see here ) Minimal moving parts Complies with BS 5839 Pt 2. standard for emergency egress A Weather Protected version is also available
- Brand: Trojan
- Category: Exit Buttons
- SKU: Em Rex-WP
Trojan Em Rex-WP
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- Em Rex-WP
- Sku:
- PSW-IP-215985
- Brand:
- Trojan
Trojan Em Rex-WP
Trojan Em Rex-WP Outdoor IP55 Rated Weatherproof Emergency Exit / Door Release Unit – Used in Electronic Access Control – Supports 9~16VDC Input – 2 Sets of N/O & N/C Outputs The Em-Rex – WP (Weather Protected Emergency Exit Device) is an emergency door release unit, which can be used on its own or in conjunction with our Request To Exit products, together these provide a total access controlled exit solution. The Em Rex-WP is the same as the standard Em Rex except that it provides additional protection against dust and water ingress. The Em Rex-WP is designed to withstand splashes and sprays but is not designed for submersion or exposure to high-pressure water streams. Key Features :- Designed to achieve IP55 ingress protection rating A protective coating has been applied to the PCB, the mechanism uses a stainless steel spring and an EVA gasket is fitted to provide a weather protection seal The unit is field re-settable, a reset tool is supplied with every unit The activation window is made from a durable polycarbonate, no parts require replacement after an activation Two outputs; one to break lock power and one for status monitoring Visual confirmation of activation, a red indicator bar appears once activated Audible confirmation of activation via an internal sounder Auxiliary input for remote operation of sounder (can be triggered by external trigger or by installation in the Em Rex ® Monitored Cover unit (see here ) Minimal moving parts Complies with BS 5839 Pt 2. standard for emergency egress A Weather Protected version is also available
