Trojan TDL-4FB

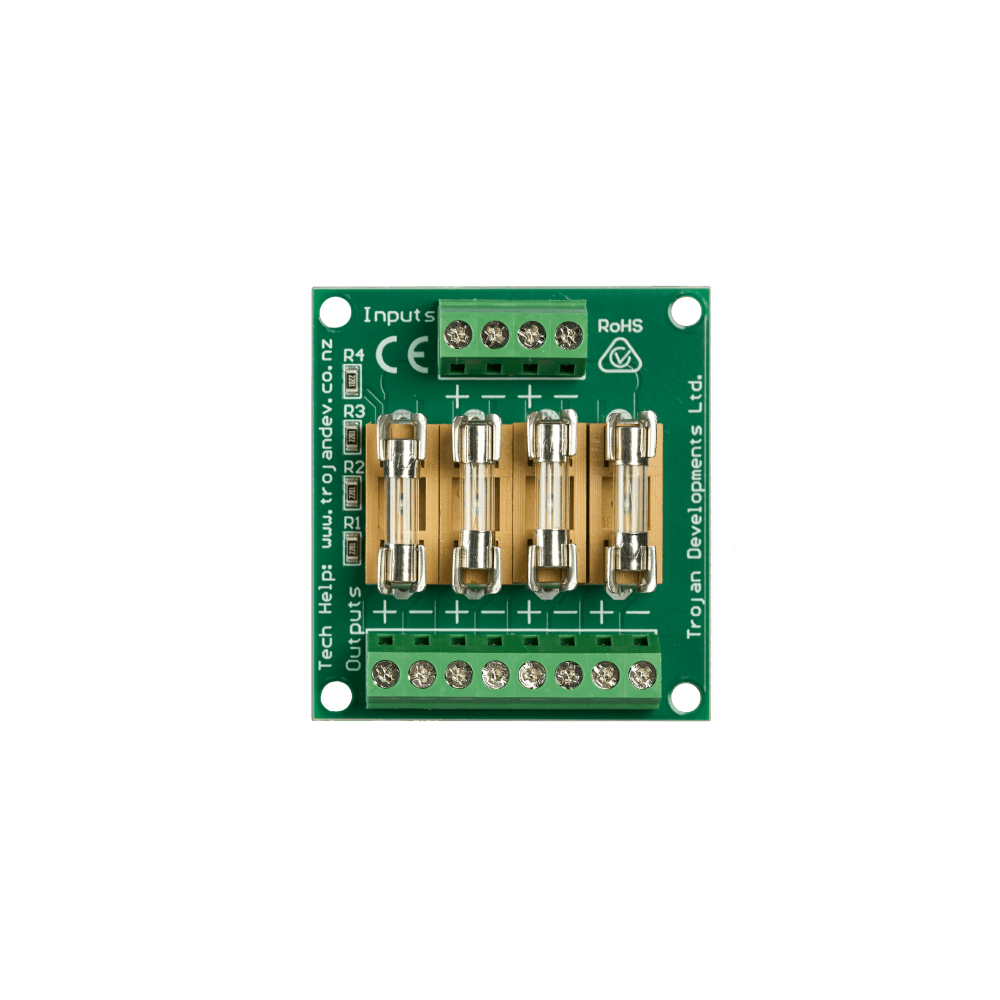

Trojan TDL-4FB 4-Way Fuse Board – 4 * Individual Fused Outputs – 5Amp Rating Per Fuse The 4 Way Fuse Board has 4 individual fused outputs. Each fuse has an associated LED to indicate that the fuse is operative. The LED illuminates green for normal positive 12Vdc operation, red for negative polarity and amber for AC voltages up to 24Vac supply. The board can be used for the protection of 24Vac cameras too but the fuses need to be changed to 1amp (and as noted earlier ) the LED’s will illuminate amber. This unit also fits on the TDL Mounting Base system to ensure a neat and tidy installation (pictured for reference, not included). Key Features :- 4 separate fused outputs The fuses are field replaceable Maximum fuse rating 5 Amps Fits TDL-MB mounting system Modular unit that can be used to protect a number of devices Designed to be used as an interface between power supplies and field devices LED’s to indicate fuse status Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm 2 cable Can be used for the protection of 24Vac cameras
- Brand: Trojan
- Category: CCTV Accessories
- SKU: TDL-4FB
Trojan TDL-4FB
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- TDL-4FB
- Sku:
- PSW-IP-463949
- Brand:
- Trojan
Trojan TDL-4FB
Trojan TDL-4FB 4-Way Fuse Board – 4 * Individual Fused Outputs – 5Amp Rating Per Fuse The 4 Way Fuse Board has 4 individual fused outputs. Each fuse has an associated LED to indicate that the fuse is operative. The LED illuminates green for normal positive 12Vdc operation, red for negative polarity and amber for AC voltages up to 24Vac supply. The board can be used for the protection of 24Vac cameras too but the fuses need to be changed to 1amp (and as noted earlier ) the LED’s will illuminate amber. This unit also fits on the TDL Mounting Base system to ensure a neat and tidy installation (pictured for reference, not included). Key Features :- 4 separate fused outputs The fuses are field replaceable Maximum fuse rating 5 Amps Fits TDL-MB mounting system Modular unit that can be used to protect a number of devices Designed to be used as an interface between power supplies and field devices LED’s to indicate fuse status Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm 2 cable Can be used for the protection of 24Vac cameras
