Trojan TDL-8FB

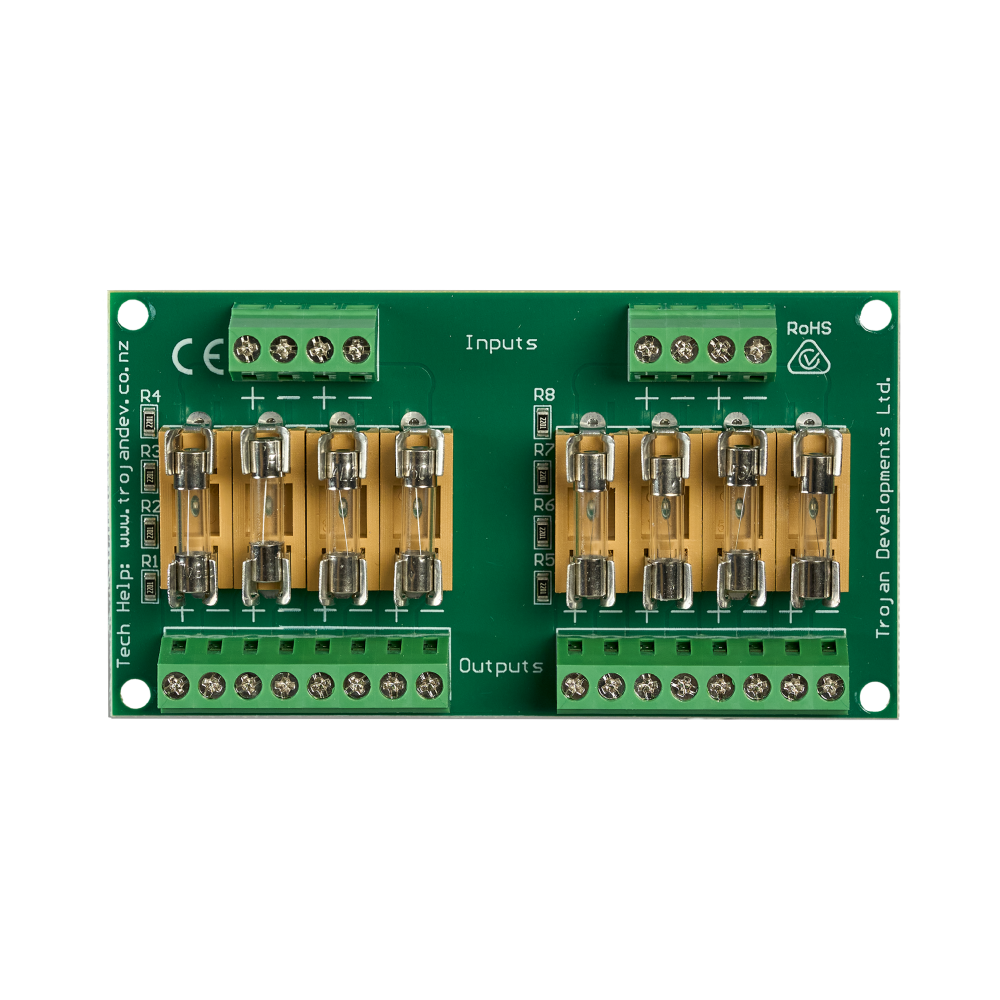

Trojan TDL-8FB 8-Way Fuse Board – 8 * Individual Fused Outputs – 5Amp Rating Per Fuse The 8 Way Fuse Board has 2 sets of 4 fuses that can be separately fed or linked together to give you 8 individual 3amp fused outputs. Each fuse has an associated LED to indicate that the fuse is operative. The LED illuminates red for normal positive 12Vdc operation, green for negative polarity and amber for up to24Vac supply. The board can be used for the protection of 24Vac cameras too but the fuses need to be changed to 1amp (and as noted earlier ) the LED will illuminate amber. This unit also fits on the TDL Mounting Base system to ensure a neat and tidy installation (pictured for reference, not included). Key Features :- 8 separate fused outputs The fuses are field replaceable Maximum fuse rating 5 Amps Modular unit that can be used to protect a number of devices Designed to be used as an interface between power supplies and field devices LED’s to indicate fuse status Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm2 cable The board can be used for the protection of 24Vac cameras
- Brand: Trojan
- Category: CCTV Accessories
- SKU: TDL-8FB
Trojan TDL-8FB
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- TDL-8FB
- Sku:
- PSW-IP-950857
- Brand:
- Trojan
Trojan TDL-8FB
Trojan TDL-8FB 8-Way Fuse Board – 8 * Individual Fused Outputs – 5Amp Rating Per Fuse The 8 Way Fuse Board has 2 sets of 4 fuses that can be separately fed or linked together to give you 8 individual 3amp fused outputs. Each fuse has an associated LED to indicate that the fuse is operative. The LED illuminates red for normal positive 12Vdc operation, green for negative polarity and amber for up to24Vac supply. The board can be used for the protection of 24Vac cameras too but the fuses need to be changed to 1amp (and as noted earlier ) the LED will illuminate amber. This unit also fits on the TDL Mounting Base system to ensure a neat and tidy installation (pictured for reference, not included). Key Features :- 8 separate fused outputs The fuses are field replaceable Maximum fuse rating 5 Amps Modular unit that can be used to protect a number of devices Designed to be used as an interface between power supplies and field devices LED’s to indicate fuse status Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm2 cable The board can be used for the protection of 24Vac cameras
