Trojan TDL-TB

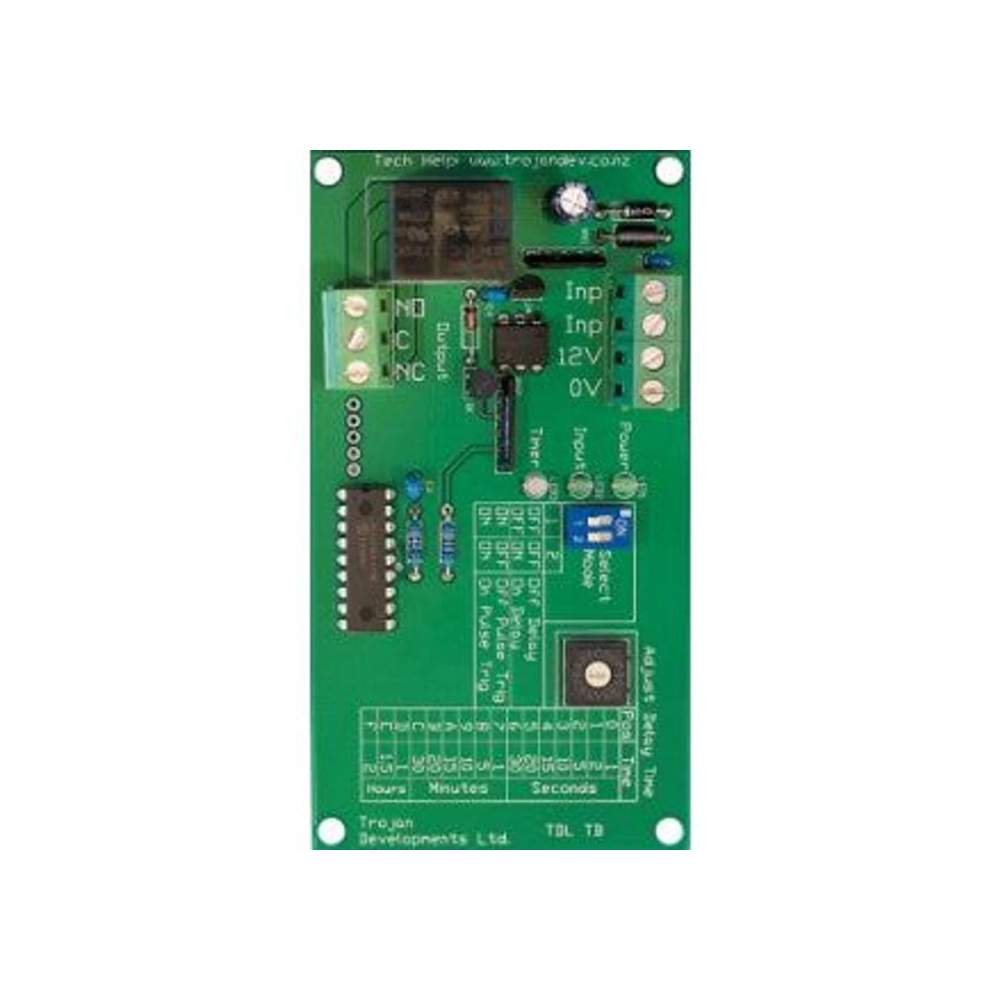

Trojan TDL-TB Timer Board – Used In Access Control The TDL multi-function timer allows you to set a definitive time duration to operate. There are 4 input types that it can have: Off Delay (loss of 12Vdc on the input gives an OFF delay on the output) On Delay (gain of 12Vdc on the input gives ON delay on the output) Off Pulse Trigger (the 12Vdc input is lost for a moment which gives an OFF delay on the output) On Pulse Trigger (the 12Vdc input is lost for a moment which gives an ON delay on the output) There are 16 time intervals to choose from which are preset and selected by a rotary dip switch The time intervals are as follows: sec sec sec sec sec sec sec min min min min min min hr hr hr Time 1 2 5 10 15 20 30 1 5 10 15 20 30 1 1.5 2 Dip Switch Position 0 1 2 3 4 5 6 7 8 9 A B C D E F Key Features :- Off Delay (loss of 0Vdc on the input gives an OFF delay on the output) On Delay (gain of 0Vdc on the input gives ON delay on the output) Off Pulse Trigger (the 0Vdc input is lost for a moment which gives an OFF delay on the output) On Pulse Trigger (the 0Vdc input is lost for a moment which gives an ON delay on the output) Time duration is easily set via the rotary dip switch, as listed on the board. Set time will not drift as the components age or the temperature fluctuates. On board LED’s indicate that the board has power, that the input has been operated, that the timer is counting down and that the output is triggered. Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm 2 cable Contact rated at 8 Amps AC/DC Fits TDL-MB mounting system (pictured for reference, not included)
- Brand: Trojan
- Category: CCTV Accessories
- SKU: TDL-TB
Trojan TDL-TB
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- TDL-TB
- Sku:
- PSW-IP-829545
- Brand:
- Trojan
Trojan TDL-TB
Trojan TDL-TB Timer Board – Used In Access Control The TDL multi-function timer allows you to set a definitive time duration to operate. There are 4 input types that it can have: Off Delay (loss of 12Vdc on the input gives an OFF delay on the output) On Delay (gain of 12Vdc on the input gives ON delay on the output) Off Pulse Trigger (the 12Vdc input is lost for a moment which gives an OFF delay on the output) On Pulse Trigger (the 12Vdc input is lost for a moment which gives an ON delay on the output) There are 16 time intervals to choose from which are preset and selected by a rotary dip switch The time intervals are as follows: sec sec sec sec sec sec sec min min min min min min hr hr hr Time 1 2 5 10 15 20 30 1 5 10 15 20 30 1 1.5 2 Dip Switch Position 0 1 2 3 4 5 6 7 8 9 A B C D E F Key Features :- Off Delay (loss of 0Vdc on the input gives an OFF delay on the output) On Delay (gain of 0Vdc on the input gives ON delay on the output) Off Pulse Trigger (the 0Vdc input is lost for a moment which gives an OFF delay on the output) On Pulse Trigger (the 0Vdc input is lost for a moment which gives an ON delay on the output) Time duration is easily set via the rotary dip switch, as listed on the board. Set time will not drift as the components age or the temperature fluctuates. On board LED’s indicate that the board has power, that the input has been operated, that the timer is counting down and that the output is triggered. Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm 2 cable Contact rated at 8 Amps AC/DC Fits TDL-MB mounting system (pictured for reference, not included)
