Uniview XVR301-04Q

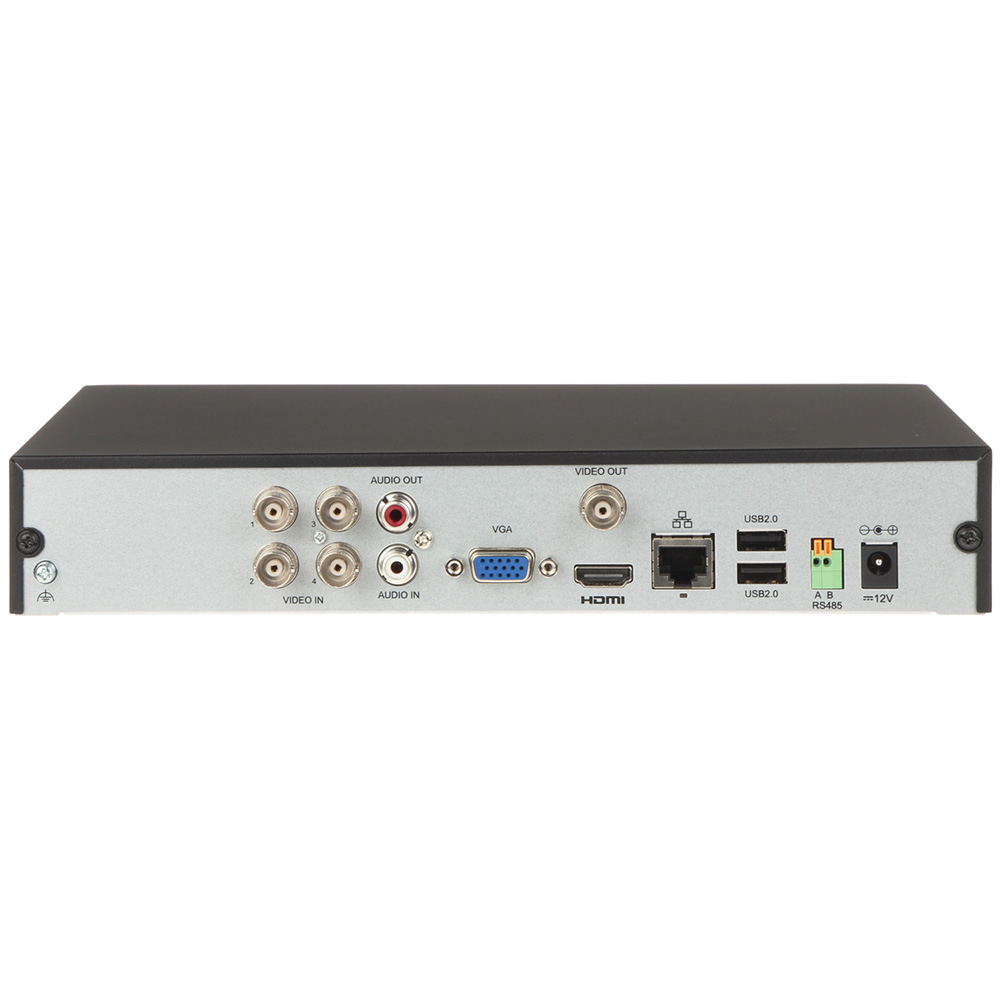

Uniview XVR301-04Q Compact 1U H265 4K 4-Channel Pentabrid (HDTVI / HDCVI / AHD / CVBS / IP) DVR – 4x BNC Inputs + 2x IPC Support Key Features :- Support H.265 / H.264 video formats Support audio over coaxial cable Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access 4-channel BNC input Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 Long transmission distance over coaxial cable Note – This can be used as an encoder to turn analogue (and HD analogue) cameras into IPC on an Uniview NVR Hardware characteristics :- 1 x VGA port (max. 1080P resolution) 1 x HDMI port (max. 1080 resolution) – Same display output as VGA 1 x CVBS output 1 x 3.5″ SATA HDD port (max. 6TB HDD per port) 2 x USB ports (two rear) 1 x RS-485 port 4 x BNC inputs (to support Analogue / AHD / HDCVI / HDTVI cameras)* – Check specifications for resolution support 1 x LAN port (10/100Mbps) No Alarm input ports No Alarm output ports 1 x Audio RCA input port 1 x Audio RCA output port
- Brand: Uniview
- Category: CCTV Accessories
- SKU: XVR301-04Q
Uniview XVR301-04Q
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- XVR301-04Q
- Sku:
- PSW-IP-876639
- Brand:
- Uniview
Uniview XVR301-04Q
Uniview XVR301-04Q Compact 1U H265 4K 4-Channel Pentabrid (HDTVI / HDCVI / AHD / CVBS / IP) DVR – 4x BNC Inputs + 2x IPC Support Key Features :- Support H.265 / H.264 video formats Support audio over coaxial cable Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access 4-channel BNC input Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 Long transmission distance over coaxial cable Note – This can be used as an encoder to turn analogue (and HD analogue) cameras into IPC on an Uniview NVR Hardware characteristics :- 1 x VGA port (max. 1080P resolution) 1 x HDMI port (max. 1080 resolution) – Same display output as VGA 1 x CVBS output 1 x 3.5″ SATA HDD port (max. 6TB HDD per port) 2 x USB ports (two rear) 1 x RS-485 port 4 x BNC inputs (to support Analogue / AHD / HDCVI / HDTVI cameras)* – Check specifications for resolution support 1 x LAN port (10/100Mbps) No Alarm input ports No Alarm output ports 1 x Audio RCA input port 1 x Audio RCA output port
