Utepo UTP3210-PSD

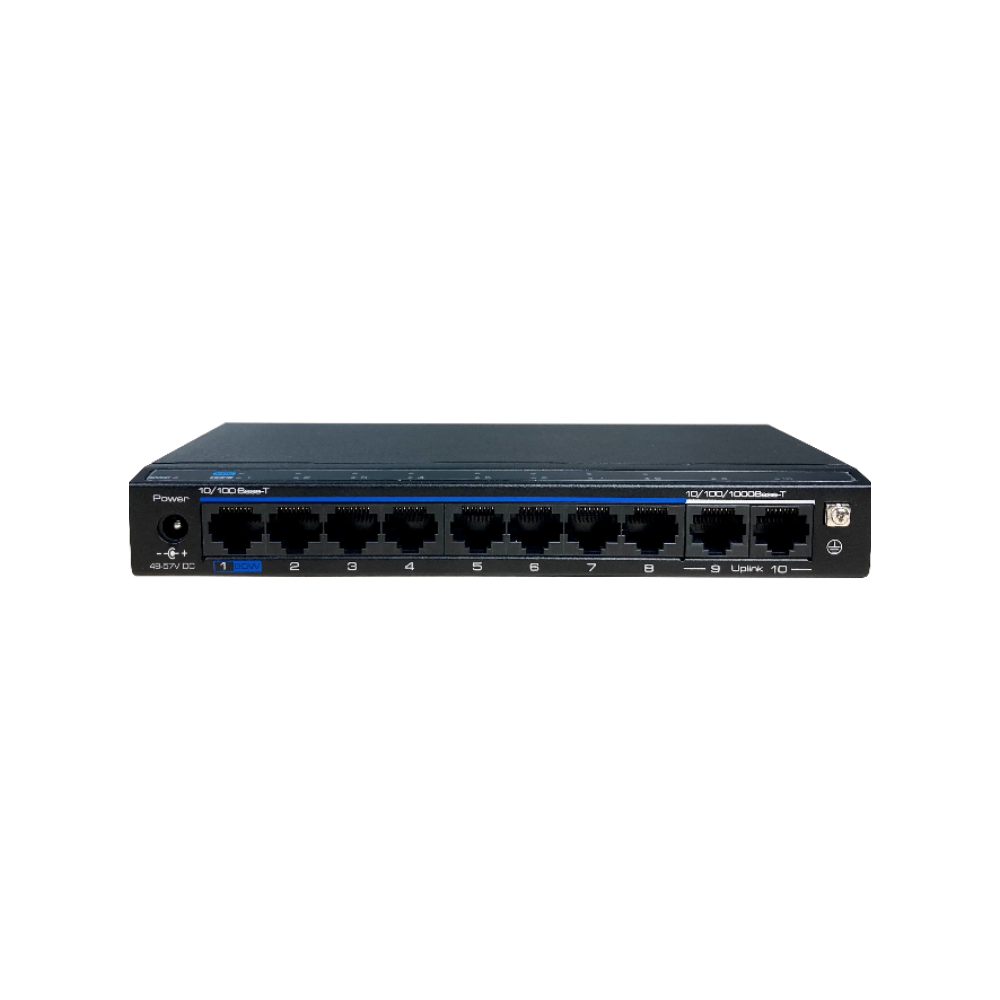

Utepo UTP3210-PSD Unamanaged Ethernet Network PoE++ Switch With 8 * FE PoE Ports + 2 * GbE Uplink Ports – 150w PoE Power Budget Key Features :- 8 * 10/100BASE-T PoE RJ-45 (Auto MDI/MDIX) 2 * 10/100/1000BASE-T RJ-45 (Auto MDI/MDIX) PoE Mode DIP Switch Mode 1: 45W max for each port Mode 2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each. One-key Smart Mode Default: All ports are free to communicate, transmission distance: 0~100m VLAN: Downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog. CCTV: The transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog. Complies with the IEEE 802.3af/at/bt PoE standard, the PoE port 1 of switches supports 90W max of PoE output power, and the rest PoE ports support 45W max of PoE output power. Supports PoE watchdog under VLAN & CCTV mode. The switches could continuously detect PoE devices and reboot PoE devices automatically when a link failure or device malfunction is detected. Supports 6KV surge protection to ensure stable operation Lightweight metal casing Utepo Product-Link
- Brand: Utepo
- Category: PoE Switches
- SKU: UTP3210-PSD
Utepo UTP3210-PSD
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- UTP3210-PSD
- Sku:
- PSW-IP-660411
- Brand:
- Utepo
Utepo UTP3210-PSD
Utepo UTP3210-PSD Unamanaged Ethernet Network PoE++ Switch With 8 * FE PoE Ports + 2 * GbE Uplink Ports – 150w PoE Power Budget Key Features :- 8 * 10/100BASE-T PoE RJ-45 (Auto MDI/MDIX) 2 * 10/100/1000BASE-T RJ-45 (Auto MDI/MDIX) PoE Mode DIP Switch Mode 1: 45W max for each port Mode 2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each. One-key Smart Mode Default: All ports are free to communicate, transmission distance: 0~100m VLAN: Downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog. CCTV: The transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog. Complies with the IEEE 802.3af/at/bt PoE standard, the PoE port 1 of switches supports 90W max of PoE output power, and the rest PoE ports support 45W max of PoE output power. Supports PoE watchdog under VLAN & CCTV mode. The switches could continuously detect PoE devices and reboot PoE devices automatically when a link failure or device malfunction is detected. Supports 6KV surge protection to ensure stable operation Lightweight metal casing Utepo Product-Link
