Utepo UTP6306TS-PSD-W

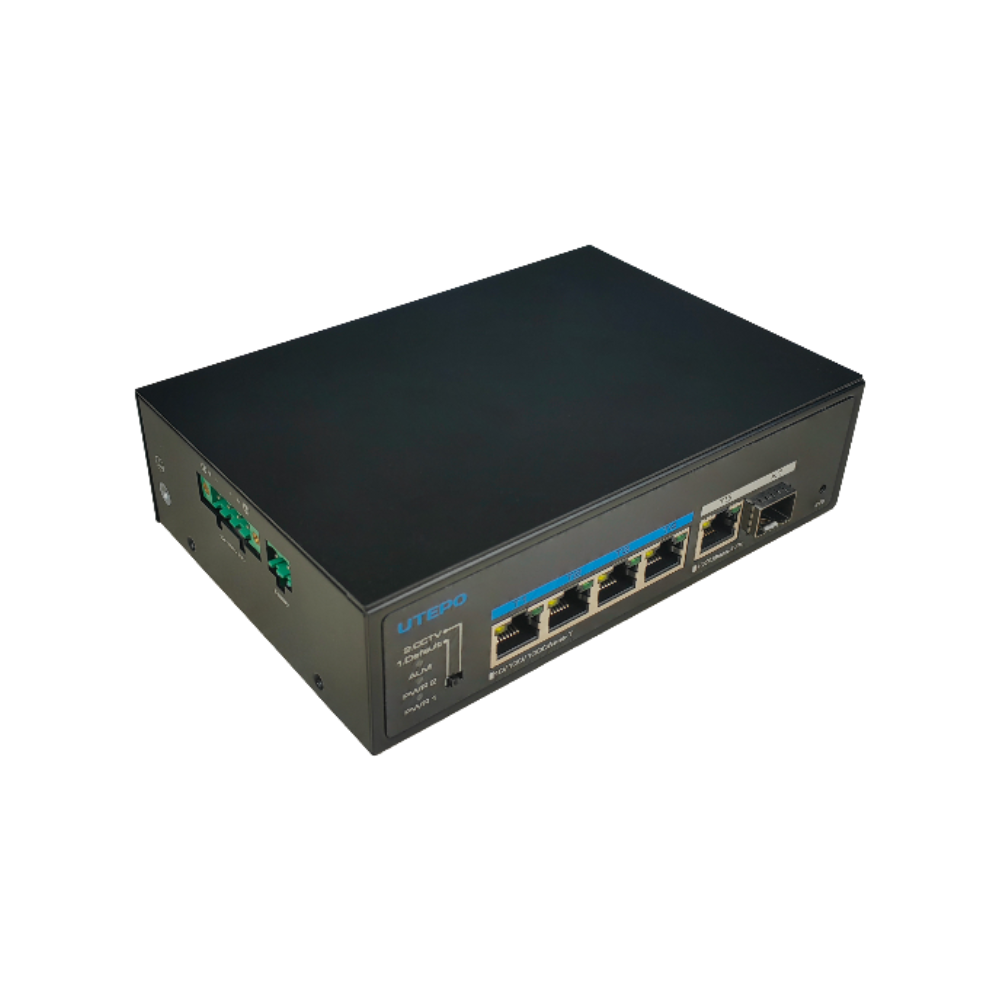

Utepo UTP6306TS-PSD-W Unmanaged Industrial DIN-RAIL Full-Gigabit Network PoE Switch with 4* GbE PoE Ports + 1* GbE Uplink Port + 1* SFP Slot – Supports 12V~57VDC Input Key Features :- 4 * 10/100/1000BASE-T PoE++ RJ-45 (Auto MDI/MDIX) 1 * 10/100/1000BASE-T RJ-45 (Auto MDI/MDIX) 1 * 1000BASE-X SFP 1 * Relay Redundant power supply UTP6306TS-PSD-W supports 12~57V wide voltage input 6kV surge immunity 6kV contact discharge, 8kV air discharge ESD protection Fan-less metal shell design DIN-rail / Desktop / Wall mounted installation Power-over-Ethernet IEEE 802.3af/at/bt 90W max for each port UTP6306TS-PSD-W: 240W @ 48VDC, 120W @ 24VDC, 60W @ 12VDC max for whole switch Q-PoE (Quick PoE) The switch supports the Q-PoE (Quick PoE) technology, which enables PoE power supply immediately upon switch startup without waiting for switch system software control One-key Smart Mode CCTV: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps Perfect for solar installations with varying DC voltage input support (12VDC~57VDC) Utepo Product-Link -> UTP6306TS-PSD-W
- Brand: Utepo
- Category: PoE Switches
- SKU: UTP6306TS-PSD-W
Utepo UTP6306TS-PSD-W
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- UTP6306TS-PSD-W
- Sku:
- PSW-IP-212636
- Brand:
- Utepo
Utepo UTP6306TS-PSD-W
Utepo UTP6306TS-PSD-W Unmanaged Industrial DIN-RAIL Full-Gigabit Network PoE Switch with 4* GbE PoE Ports + 1* GbE Uplink Port + 1* SFP Slot – Supports 12V~57VDC Input Key Features :- 4 * 10/100/1000BASE-T PoE++ RJ-45 (Auto MDI/MDIX) 1 * 10/100/1000BASE-T RJ-45 (Auto MDI/MDIX) 1 * 1000BASE-X SFP 1 * Relay Redundant power supply UTP6306TS-PSD-W supports 12~57V wide voltage input 6kV surge immunity 6kV contact discharge, 8kV air discharge ESD protection Fan-less metal shell design DIN-rail / Desktop / Wall mounted installation Power-over-Ethernet IEEE 802.3af/at/bt 90W max for each port UTP6306TS-PSD-W: 240W @ 48VDC, 120W @ 24VDC, 60W @ 12VDC max for whole switch Q-PoE (Quick PoE) The switch supports the Q-PoE (Quick PoE) technology, which enables PoE power supply immediately upon switch startup without waiting for switch system software control One-key Smart Mode CCTV: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps Perfect for solar installations with varying DC voltage input support (12VDC~57VDC) Utepo Product-Link -> UTP6306TS-PSD-W
