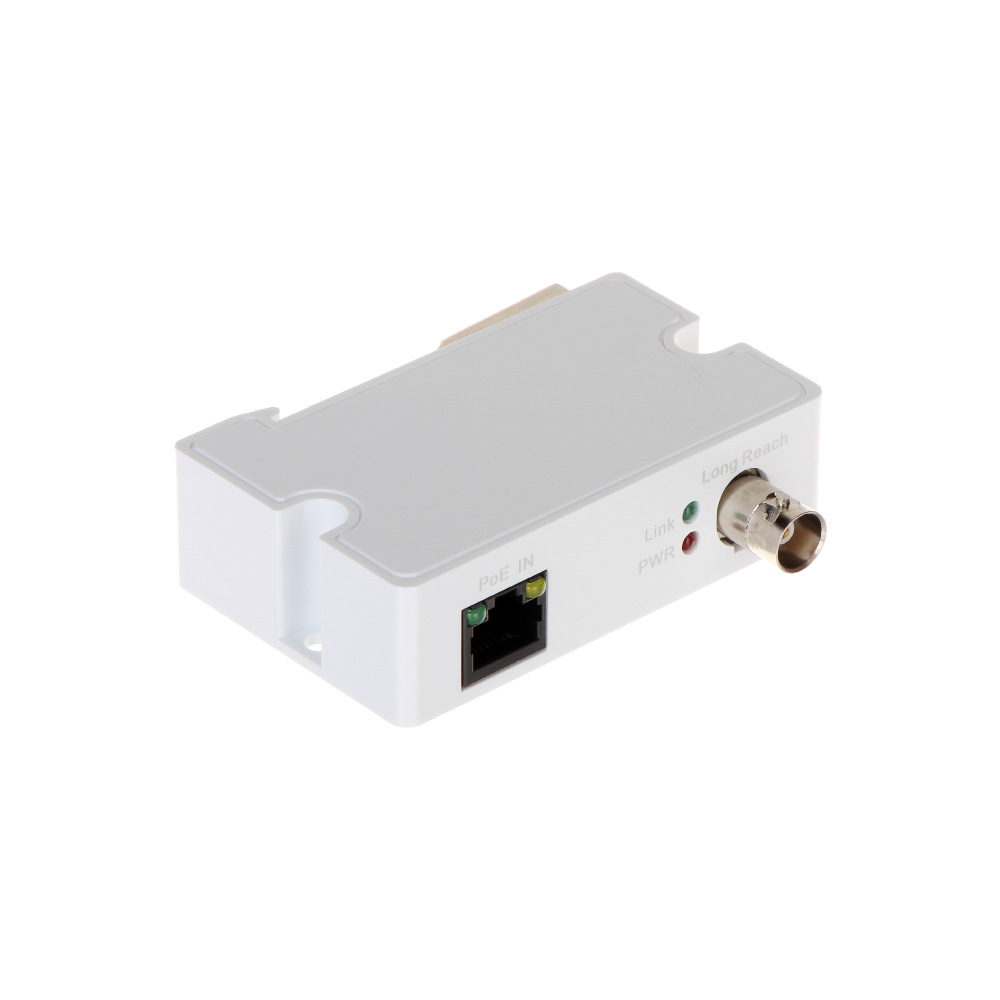

D-Tech DH-LR1002-1EC
D-Tech DH-LR1002-1EC DIN-RAIL IP / PoE over Coax Converter / Extender – Single Unit – PoE Source-end Unit – Requires PoE Input Key Features :- Functional Ports: One (1) RJ45, 10/100 Mbps Base-TX, One (1) BNC Transmission Distance: 100 Mbps: 400 m (1312 ft), 10 Mbps: 1000 m (3280 ft) Power Consumption: <2 W Transmission Bandwidth: RG59 Coaxial Cable: 400 m (1312 ft) at 100 Mbps, 1000 m (3280 ft) at 10 Mbps PoE Protocol: IEEE802.3af (PoE) and IEEE802.3at (PoE+) Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3x Operating Temperature: – 30 °C to 65 °C (– 22 °F to 149 °F) Application Humidity: 5% to 95% Lightning Protection: Common Mode: 4 KV, Differential Mode: 2 KV Dimensions (W x D x H): 79.0 mm x 52.0 mm x 23.0 mm (3.11 in. x 2.05 in. x 0.91 in.) Weight: 0.61 kg (1.34 lb) Depending on your system, the LR1002 or LR1002-1ET is required with this unit. Please see the attached ePoE Configuration Guide image for more information
- Brand: Dahua
- Category: IP over Coax
- SKU: DH-LR1002-1EC
Dahua D-Tech DH-LR1002-1EC
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- DH-LR1002-1EC
- Sku:
- PSW-IP-300937
- Brand:
- Dahua
D-Tech DH-LR1002-1EC
D-Tech DH-LR1002-1EC DIN-RAIL IP / PoE over Coax Converter / Extender – Single Unit – PoE Source-end Unit – Requires PoE Input Key Features :- Functional Ports: One (1) RJ45, 10/100 Mbps Base-TX, One (1) BNC Transmission Distance: 100 Mbps: 400 m (1312 ft), 10 Mbps: 1000 m (3280 ft) Power Consumption: <2 W Transmission Bandwidth: RG59 Coaxial Cable: 400 m (1312 ft) at 100 Mbps, 1000 m (3280 ft) at 10 Mbps PoE Protocol: IEEE802.3af (PoE) and IEEE802.3at (PoE+) Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3x Operating Temperature: – 30 °C to 65 °C (– 22 °F to 149 °F) Application Humidity: 5% to 95% Lightning Protection: Common Mode: 4 KV, Differential Mode: 2 KV Dimensions (W x D x H): 79.0 mm x 52.0 mm x 23.0 mm (3.11 in. x 2.05 in. x 0.91 in.) Weight: 0.61 kg (1.34 lb) Depending on your system, the LR1002 or LR1002-1ET is required with this unit. Please see the attached ePoE Configuration Guide image for more information
