Utepo UTP7301EPOC

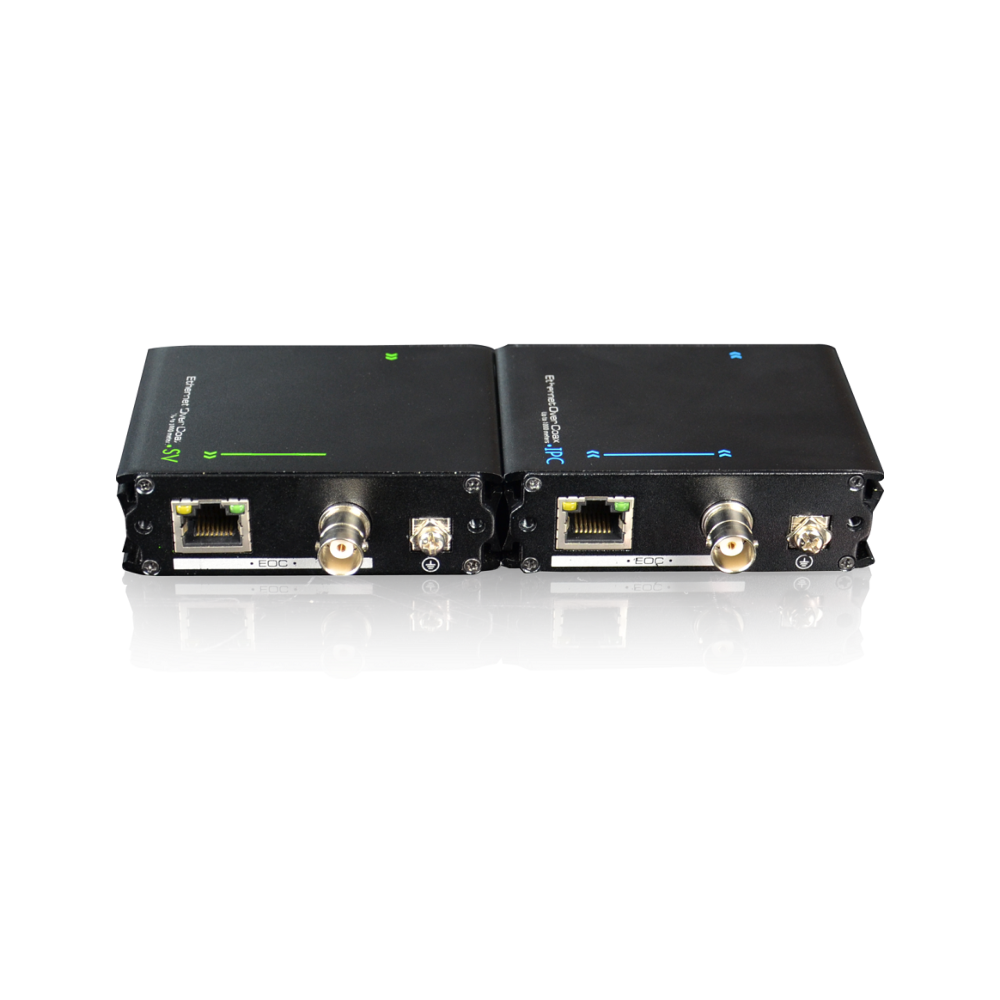

Utepo UTP7301EPOC IP PoE over Coax / 2-Wire Converter / Extender – Supplied as a pair (1 x SV base unit + 1 x IPC end unit) – Supports Up To 400m Distance on Coax & Up To 500m Distance on Ethernet or 2-wire – PoE Powered or 54VDC Powered Key Features :- Supplied as a pair: 1 x SV-Unit and 1 x IPC-Unit SV-Unit has 48-57V DC port, one PoE input port and two output ports: BNC and RJ45 IPC-Unit has two input ports: BNC and RJ45, one PoE output port Adopt advanced transmission and power supply technology, can transmit Ethernet signal and power signal up to 500m through coaxial cable and transmit Ethernet signal and power signal up to 400m through network cable Ethernet delay less than 1ms Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af/at Protection: excellent circuit isolation protection, superior product anti-thunder, anti-static and anti-interference ability Appearance: solid and delicate, meet MIT rack installation standard, working temperature: 0℃～55°C Installation: Plug-and-play, no setting required Dimensions: 63.2mm * 82mm * 25mm Casing: Aluminium Weight: IPC unit – 153g; SV unit – 154g Utepo Product-Link
- Brand: Utepo
- Category: IP over Coax
- SKU: UTP7301EPOC
Utepo UTP7301EPOC
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- UTP7301EPOC
- Sku:
- PSW-IP-585505
- Brand:
- Utepo
Utepo UTP7301EPOC
Utepo UTP7301EPOC IP PoE over Coax / 2-Wire Converter / Extender – Supplied as a pair (1 x SV base unit + 1 x IPC end unit) – Supports Up To 400m Distance on Coax & Up To 500m Distance on Ethernet or 2-wire – PoE Powered or 54VDC Powered Key Features :- Supplied as a pair: 1 x SV-Unit and 1 x IPC-Unit SV-Unit has 48-57V DC port, one PoE input port and two output ports: BNC and RJ45 IPC-Unit has two input ports: BNC and RJ45, one PoE output port Adopt advanced transmission and power supply technology, can transmit Ethernet signal and power signal up to 500m through coaxial cable and transmit Ethernet signal and power signal up to 400m through network cable Ethernet delay less than 1ms Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af/at Protection: excellent circuit isolation protection, superior product anti-thunder, anti-static and anti-interference ability Appearance: solid and delicate, meet MIT rack installation standard, working temperature: 0℃～55°C Installation: Plug-and-play, no setting required Dimensions: 63.2mm * 82mm * 25mm Casing: Aluminium Weight: IPC unit – 153g; SV unit – 154g Utepo Product-Link
