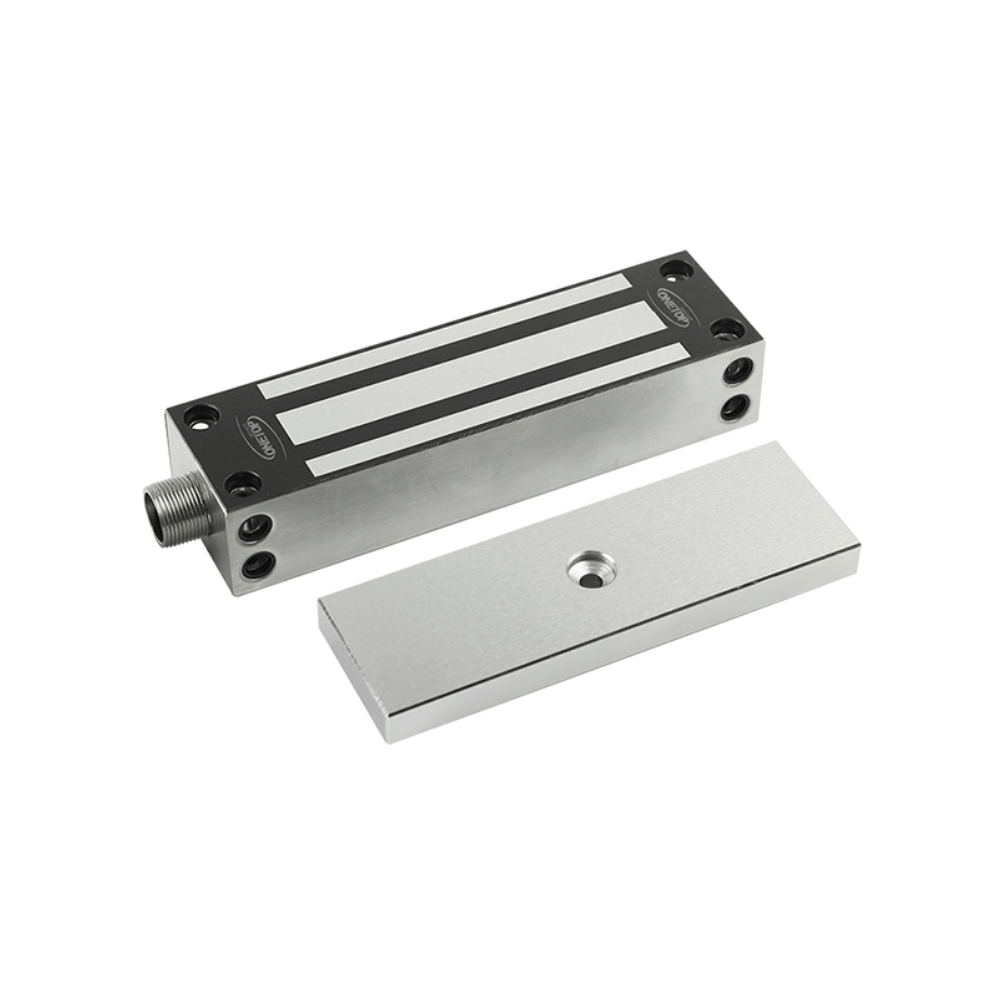

OneTop EM5000G
OneTop EM5000G Outdoor-Rated Weather-resistant Stainless-Steel Electronic Magnetic Lock – Side / Face / Front Mounted – 12VDC / 24VDC – 680Kgs Holding Force – Lock Status Sensor Monitoring Key Features :- Stainless 304 steel body housing Side-mount / Face-mount mag-lock Weather resistant IP67 Fail-safe (Power To Lock) CE / C-Tick Lock Status Sensor (LSS) monitoring Guaranteed no residual magnetism Mag Dimensions: 225mm (L) x 63mm (W) x 44mm (H) Armature Plate: 190mm (L) x 61mm (W) x 16mm (H) Operating Voltage: 12VDC/ 24VDC +/- 15% Operating Current: 480mA @12VDC 240mA @ 24VDC Holding Force: Up to 680Kg Weight 5.5Kg OneTop Product-Link
- Brand: OneTop
- Category: Magnetic Locks
- SKU: EM5000G
OneTop EM5000G
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- EM5000G
- Sku:
- PSW-IP-799219
- Brand:
- OneTop
OneTop EM5000G
OneTop EM5000G Outdoor-Rated Weather-resistant Stainless-Steel Electronic Magnetic Lock – Side / Face / Front Mounted – 12VDC / 24VDC – 680Kgs Holding Force – Lock Status Sensor Monitoring Key Features :- Stainless 304 steel body housing Side-mount / Face-mount mag-lock Weather resistant IP67 Fail-safe (Power To Lock) CE / C-Tick Lock Status Sensor (LSS) monitoring Guaranteed no residual magnetism Mag Dimensions: 225mm (L) x 63mm (W) x 44mm (H) Armature Plate: 190mm (L) x 61mm (W) x 16mm (H) Operating Voltage: 12VDC/ 24VDC +/- 15% Operating Current: 480mA @12VDC 240mA @ 24VDC Holding Force: Up to 680Kg Weight 5.5Kg OneTop Product-Link
