OneTop SH2500

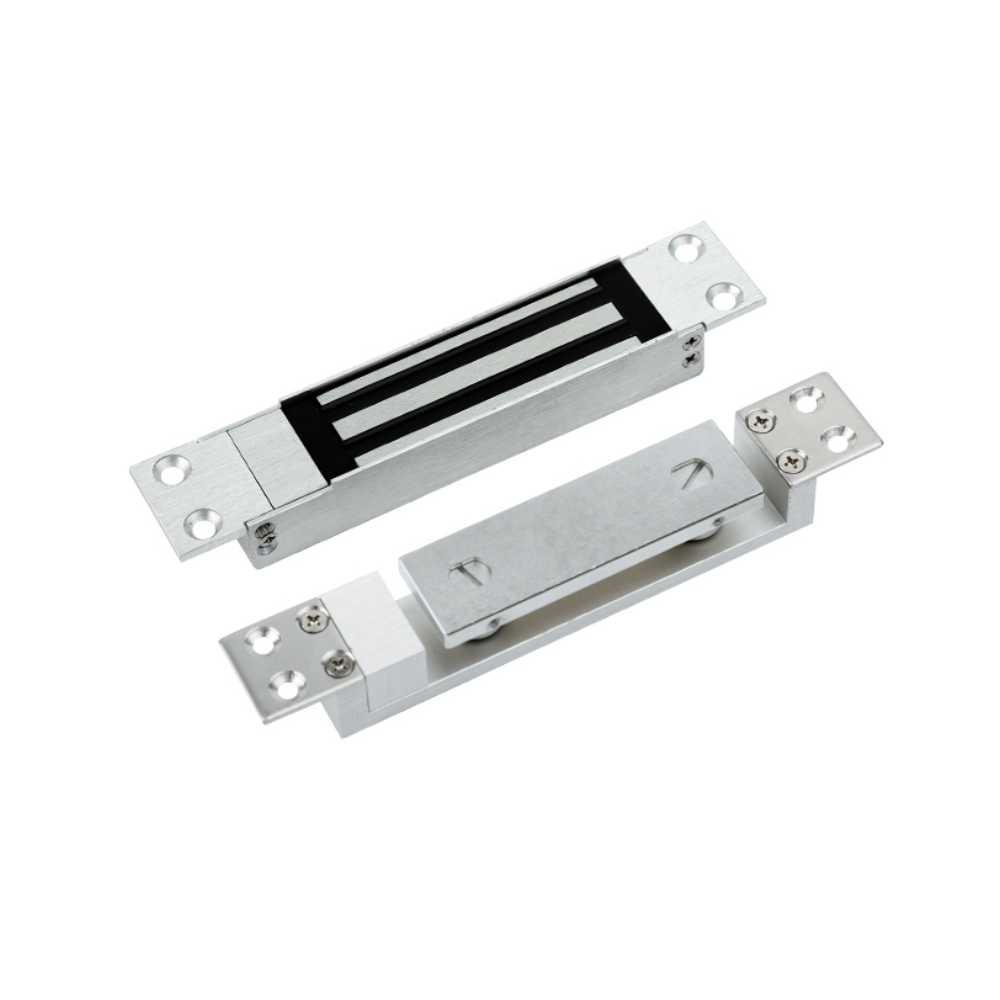

OneTop SH2500 Electric Fail-Safe Electromagnetic Shear Lock – Up to 300Kg Holding Force – 12VDC~24VDC Powered – Anti-Cossosion Plating – Fail-Safe Key Features :- Lock Holding Force: 300Kg Fail Safe: Power to lock Surface Finish: Anodized Aluminium housing Zinc plated for anti-corrosion (passed 96Hrs Salt spray test)* Lock Body Dimension: L 165 x W 31 x H 21mm Armature Plate Dimension: L 86 x W 25.4 x H 6mm Lock Operating Voltage: 12/ 24VDC ±10% Lock Operating Current: 1200mA Rush 200mA hold 12VDC Lock Operating Current: 600mA Rush 100mA hold 24VDC Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A Dynamic Impact Resistance: 60J Operating Temp: 10°C ~60°C Expected Usage Lifespan: Over 1 million cycles Compliance: UL, BS EN1634-1:2024, CE, RoHS. 4 Hrs Fire Resistance. OneTop Product-Link
- Brand: OneTop
- Category: Magnetic Locks
- SKU: SH2500
OneTop SH2500
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- SH2500
- Sku:
- PSW-IP-220164
- Brand:
- OneTop
OneTop SH2500
OneTop SH2500 Electric Fail-Safe Electromagnetic Shear Lock – Up to 300Kg Holding Force – 12VDC~24VDC Powered – Anti-Cossosion Plating – Fail-Safe Key Features :- Lock Holding Force: 300Kg Fail Safe: Power to lock Surface Finish: Anodized Aluminium housing Zinc plated for anti-corrosion (passed 96Hrs Salt spray test)* Lock Body Dimension: L 165 x W 31 x H 21mm Armature Plate Dimension: L 86 x W 25.4 x H 6mm Lock Operating Voltage: 12/ 24VDC ±10% Lock Operating Current: 1200mA Rush 200mA hold 12VDC Lock Operating Current: 600mA Rush 100mA hold 24VDC Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A Dynamic Impact Resistance: 60J Operating Temp: 10°C ~60°C Expected Usage Lifespan: Over 1 million cycles Compliance: UL, BS EN1634-1:2024, CE, RoHS. 4 Hrs Fire Resistance. OneTop Product-Link
