OneTop EM3500 DSS

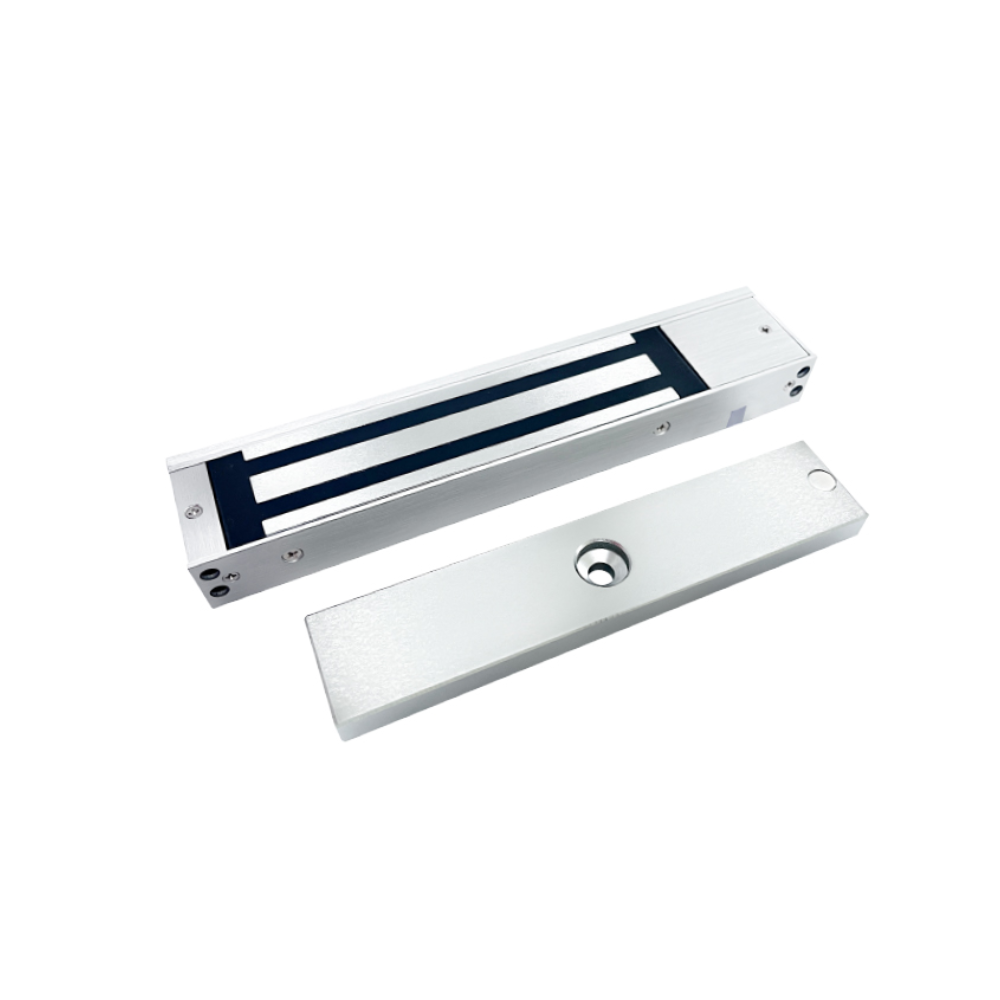

OneTop EM3500 DSS Single Door Electromagnetic Lock – 12VDC/24VDC Powered – 280KGs Pull Force – Supports Monitoring (Lock Status Sensor & Door Status Sensor) – Anti-corrosion Plating Key Features :- Certifications – BS465: Tested under British Standard for 4 hours fire resistance Fail Safe – Power to lock Lock Body Dimension – EM3500 DSS – 238L x 48W x 25H (mm) Armature Plate Dimension – EM3500 DSS – 185L x 38W x 12H (mm) Lock Operating Voltage – 12/ 24VDC ±10% Lock Operating Current – 530mA /12VDC; 260mA /24VDC Lock Holding Force – Up to 250~280Kg Weight – EM3500 DSS 2.0Kg Output Signals – EM3500 DSS is equipped with LSS & DSS Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A Operating Temp -10°C ~60°C Operating Humidity 0~95% (non-condensing) Light Panel Red/Green/Off indicating the status Insecure/Secure/Power Off the magnetic lock Surface Finish – Anodized Aluminum housing Zinc plated for anti-corrosion OneTop Product-Link
- Brand: OneTop
- Category: Magnetic Locks
- SKU: EM3500 DSS
OneTop EM3500 DSS
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- EM3500 DSS
- Sku:
- PSW-IP-604993
- Brand:
- OneTop
OneTop EM3500 DSS
OneTop EM3500 DSS Single Door Electromagnetic Lock – 12VDC/24VDC Powered – 280KGs Pull Force – Supports Monitoring (Lock Status Sensor & Door Status Sensor) – Anti-corrosion Plating Key Features :- Certifications – BS465: Tested under British Standard for 4 hours fire resistance Fail Safe – Power to lock Lock Body Dimension – EM3500 DSS – 238L x 48W x 25H (mm) Armature Plate Dimension – EM3500 DSS – 185L x 38W x 12H (mm) Lock Operating Voltage – 12/ 24VDC ±10% Lock Operating Current – 530mA /12VDC; 260mA /24VDC Lock Holding Force – Up to 250~280Kg Weight – EM3500 DSS 2.0Kg Output Signals – EM3500 DSS is equipped with LSS & DSS Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A Operating Temp -10°C ~60°C Operating Humidity 0~95% (non-condensing) Light Panel Red/Green/Off indicating the status Insecure/Secure/Power Off the magnetic lock Surface Finish – Anodized Aluminum housing Zinc plated for anti-corrosion OneTop Product-Link
