OneTop EM5700 DSS

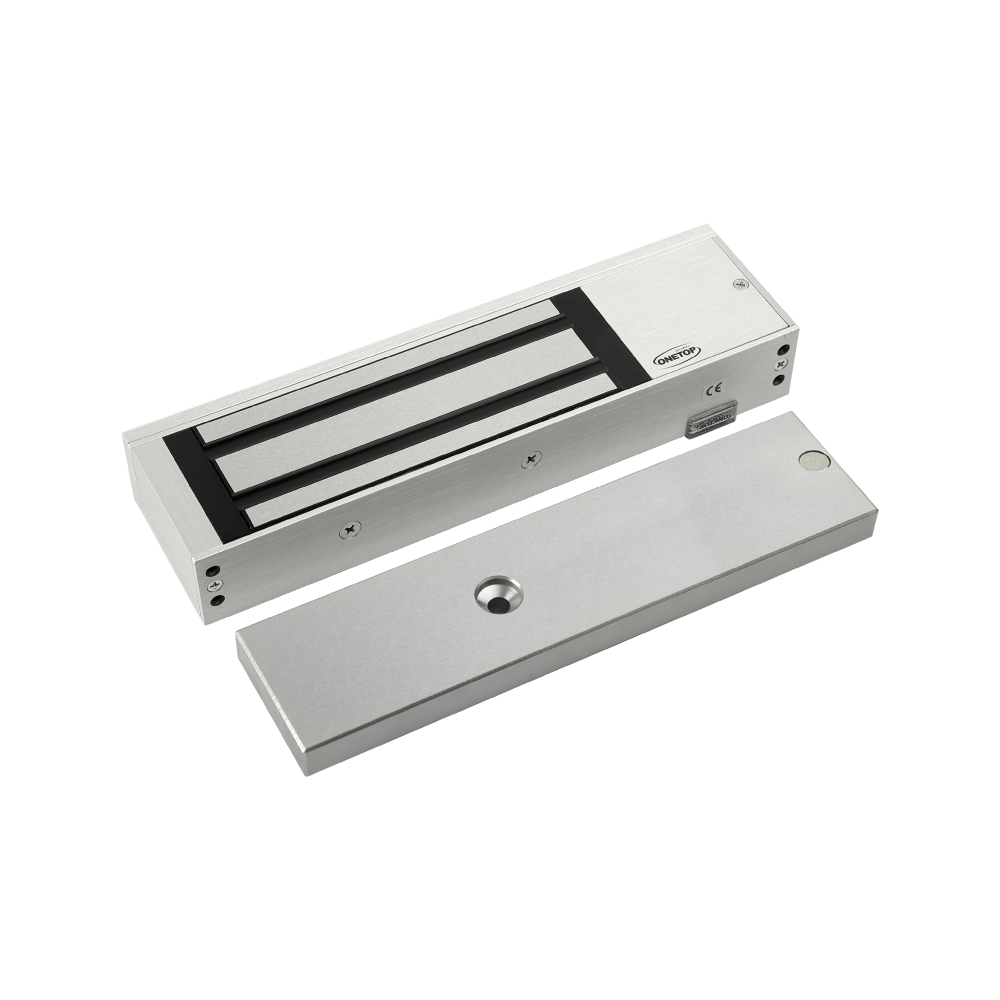

OneTop EM5700 DSS Single Door Surface-Mount Electromagnetic Lock – Fire-Rated – 12VDC/24VDC Powered – 580KGs Pull Force – Anti-Corrosion Plating – Monitored (Door Status Sensor & Lock Status Sensor) Key Features :- Lock Holding Force Up to 580Kg Surface Finish: Anodized Aluminium housing Zinc plated for anti-corrosion Fail Safe: Power-to-lock Lock Body Dimension: L 268 x W 73 x H 41mm Armature Plate Dimension: L 247 x W 61 x H 16mm Dynamic Impact Resistance: 160J Lock Operating Voltage: 12/24VDC ±10% Lock Operating Current: 530mA/ 12VDC; 260mA/24VDC Lock Status Output (LSS): NO/ NC/ COM, Max 24VDC; Max 2A Door Status Output (DSS): NO/ COM, Max 24VDC; Max 0.2A Operating Temp: -10°C ~60°C Operating Humidity: 0~95% (non-condensing) Light Panel: Red/ Green/ Off indicating the status Weight: 5.0Kg Compliance: CE, RoHs, EN 1634-1:2014/ BS EN 1634-1:2014, 4 hours fire resistance. OneTop Product-Link
- Brand: OneTop
- Category: Magnetic Locks
- SKU: EM5700 DSS
OneTop EM5700 DSS
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details
- Part #:
- EM5700 DSS
- Sku:
- PSW-IP-279791
- Brand:
- OneTop
OneTop EM5700 DSS
OneTop EM5700 DSS Single Door Surface-Mount Electromagnetic Lock – Fire-Rated – 12VDC/24VDC Powered – 580KGs Pull Force – Anti-Corrosion Plating – Monitored (Door Status Sensor & Lock Status Sensor) Key Features :- Lock Holding Force Up to 580Kg Surface Finish: Anodized Aluminium housing Zinc plated for anti-corrosion Fail Safe: Power-to-lock Lock Body Dimension: L 268 x W 73 x H 41mm Armature Plate Dimension: L 247 x W 61 x H 16mm Dynamic Impact Resistance: 160J Lock Operating Voltage: 12/24VDC ±10% Lock Operating Current: 530mA/ 12VDC; 260mA/24VDC Lock Status Output (LSS): NO/ NC/ COM, Max 24VDC; Max 2A Door Status Output (DSS): NO/ COM, Max 24VDC; Max 0.2A Operating Temp: -10°C ~60°C Operating Humidity: 0~95% (non-condensing) Light Panel: Red/ Green/ Off indicating the status Weight: 5.0Kg Compliance: CE, RoHs, EN 1634-1:2014/ BS EN 1634-1:2014, 4 hours fire resistance. OneTop Product-Link
